ZT-Tape®

Drawing No. ZT01-03-00

Part No. ZT01-03-001-1.0-B-X720.0-2U

Flame-Retardant Non-PVC Polyurethane Electrical Tape with Acrylic Adhesive

  • Cold Weather Resistant
  • Flame Retardant
  • Lightweight & Extremely Flexible
  • UL510 Recognized
  • Economical

Product Specifications

Abrasion Resistance Best
Chemical Resistance Excellent
U.V. Resistance Excellent
Dielectric Strength 800 volts/mil
Elongation 725% at break
Flame Retardant UL-510
Fluid Resistance 3g/100 sq/in. (24 hrs)
Material Thickness 0.009"
Material Thickness Variance +/- 0.005"
RoHS Compliant
Shelf-Life 12 months
Temperature Range -50° to 80°C (-58° to 176°F)
Tensile Strength 32.5 lbs/in-width at break
Shape of Installation ALL
Tape Width 1.0" Wide 2.0" Wide Custom Size
Roll Length 108 ft. Roll 60 ft. Roll
Material Color Black
Units Per Box Single Roll 2 Roll Pack 3 Roll Pack

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2017 The Zippertubing® Company, Chandler, Arizona.

Flame-Retardant Non-PVC Polyurethane Electrical Tape with Acrylic Adhesive

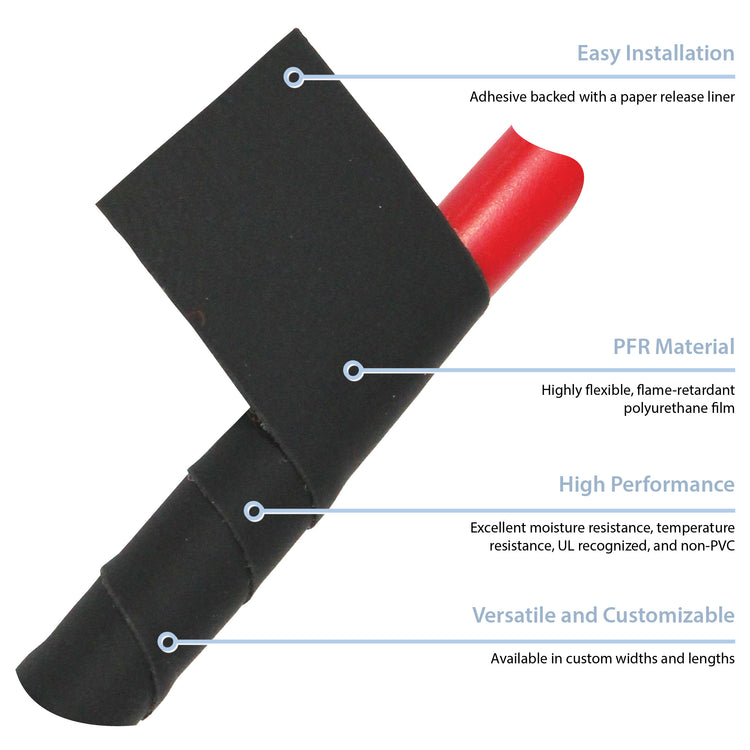

ZT-Tape® is a highly versatile, flexible, flame-retardant, non-PVC electrical tape that is comprised of Polyurethane film. The backing of the tape is made of a special pressure-sensitive acrylic adhesive and utilizes a paper release liner. With an operational temperature range of -50° to 80°C (-58° to 176°F), ZT-Tape® has excellent resistance to not only hot and cold temperatures but also moisture.

Because of its dielectric and overall strength, ZT-Tape® can be used to cover, bundle, wrap and secure your wires or cables with ease.

ZT-Tape® is the perfect mate to Zippertubing's Z-Shield™ family and PFR-18 Polyurethane-jacketed materials. It can also be used as a secondary sealing material for all of Zippertubing’s PVC and Polyurethane extruded, interlocking-closure tracks.

Benefits

  • Fits a multitude of wire or cable diameters
  • Flame-retardant, non-PVC polyurethane
  • UL-Rated and operational temperature range of -58° to 176°F, and a maximum of up to 256°F (not UL-Rated)
  • Features

  • High- and Low-temperature tape that requires NO disconnection of wires or cables
  • Excellent dielectric, abrasion, moisture, chemical and U.V. resistance
  • Easy installation with opportunities for cable splices, branch-outs and transitions
  • Works seamlessly with our PVC and Polyurethane EZ-Track, D-Track, R-Track & Z-Track
