Pressure Track
D-Track-LT (PVC)
D-Track-LT (PVC)

D-Track-LT (PVC)

3

Externally Closed, PVC, Extruded Interlock
  • Ideal For Truck & Bus Applications
  • Variable Expansion Range
  • Automotive Fluid Resistance
  • Flame Retardant
  • -30°C to 105°C Operational Limit

Material Specification No. 2017

Raw materials are not sold separately, please contact the sales department for any special requirements.

Details

Specifications

Print Datasheet


Details

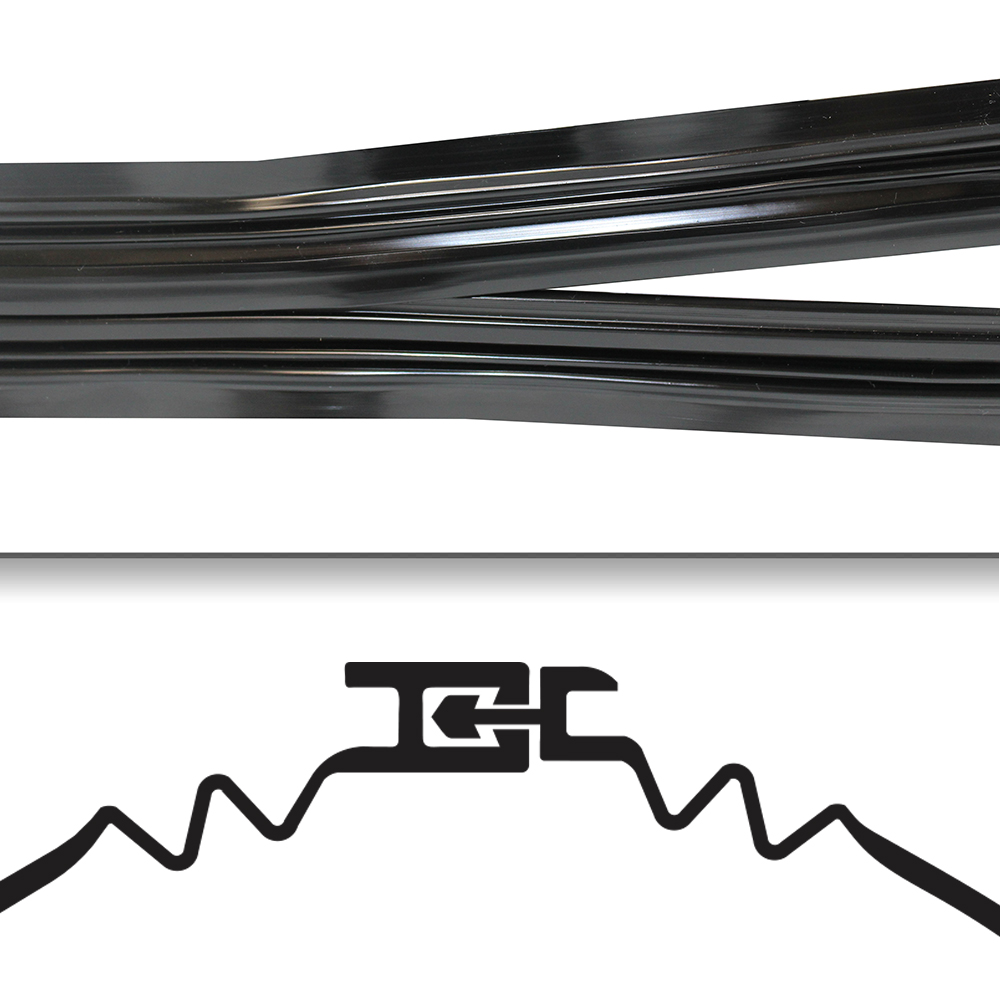

D-Track-LT is a heavy duty PVC extruded pressure track that was specifically developed to provide a strong closure for all PVC based jacketing applications. D-Track-LT when combined with a jacketing material is the ideal product to replace conventional, split tubing where cable bundles must be protected from the rugged environment faced by constant road use. This closure option keeps fluid and abrasive debris out of critical electrical circuitry and the patented expansion feature allows for cable growth as design changes occur. D-Track-LT's design makes this closure practical, economical, and extremely easy to close. D-Track-LT has an operating temperature range of -30°C to 105°C.


Reference Materials

D-Track-LT (PVC) Installation Instructions

Specifications

D-Track-LT (PVC)

D-Track-LT (PVC) Specifications:

D-Track-LT is a heavy duty PVC extruded pressure track that was specifically developed to provide a strong closure for all PVC based jacketing applications. D-Track-LT when combined with a jacketing material is the ideal product to replace conventional, split tubing where cable bundles must be protected from the rugged environment faced by constant road use. This closure option keeps fluid and abrasive debris out of critical electrical circuitry and the patented expansion feature allows for cable growth as design changes occur. D-Track-LT's design makes this closure practical, economical, and extremely easy to close. D-Track-LT has an operating temperature range of -30°C to 105°C.

Composition Polyvinyl Chloride
Chemical Resistance Good
Flame Retardant V-0 / UL 94
Profile High
Flat Thickness 0.020"
Tool Required Yes
Tool Required Yes (Slider Tool & Upgraded Pliers Available)
RoHS No
RoHS Compliant
Bundle Size Medium - Large (Typical Bundle Size: 1.0" or Larger)
Shelf Life 36 Months
Ideal Application Jacketing >1" in diameter that can be closed quickly and easily.
Shape of Installation Round
Exterior Material Polyvinyl Chloride (PVC)
Elongation 350% (min)
Roll Length Up to 200 feet continuous
Durability Better
Minimum Operating Temperature -22 ° F (-30 ° C )
Maximum Operating Temperature 221 ° F (105 ° C )

Available Attributes

Material Color Black

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2021 The Zippertubing® Company, Chandler, Arizona.
