EZ-Track® (PVC)
EZ-Track® (PVC)

EZ-Track® (PVC)

A single-extruded PVC pressure track with an arrowhead and channel locking system.
  • Fire-retardant and excellent abrasion resistance
  • Fungus resistant meeting Mil-Std-810D
  • Provides secure seal around wires or cables

Material Specification No. 2019

Raw materials are not sold separately, please contact the sales department for any special requirements.

Details

Specifications

Print Datasheet


Details

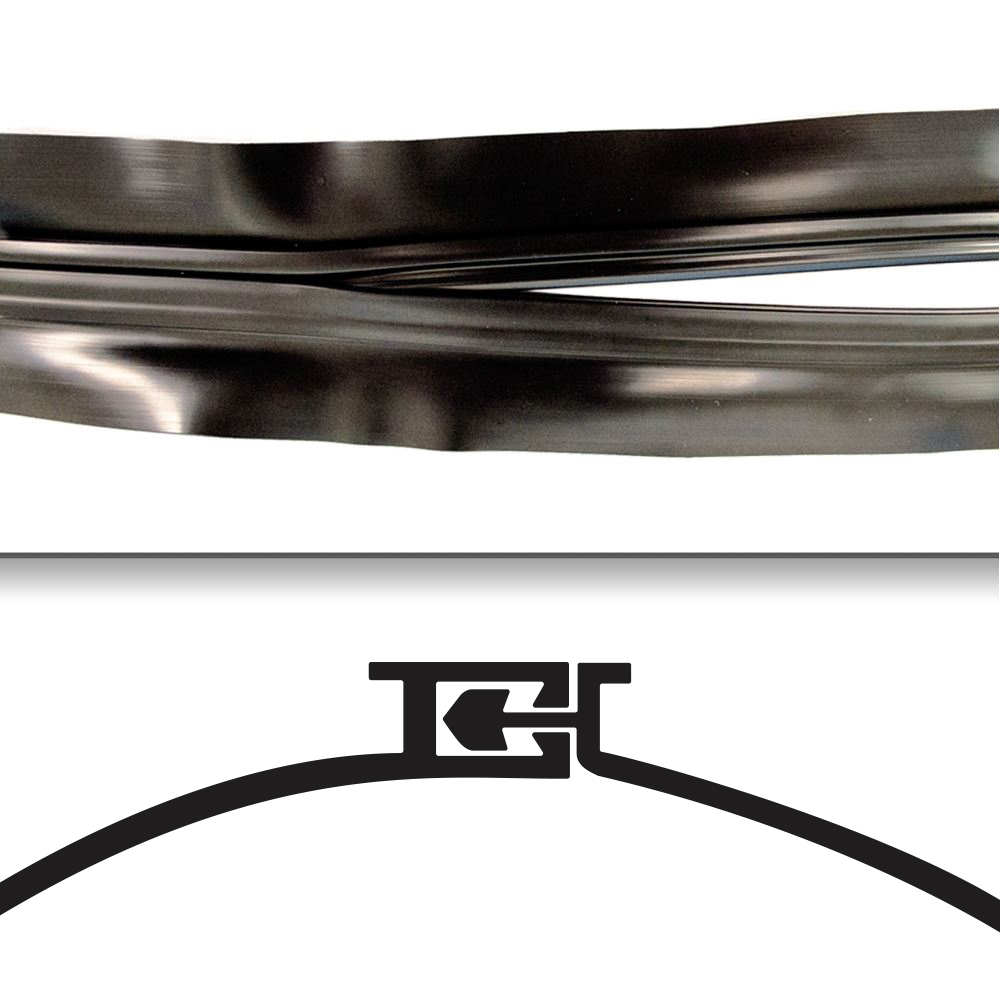

EZ-Track (PVC) has an arrowhead and channel interlocking system for a strong closure.

EZ-Track (PVC) is a pressure track made from a single extruded polyvinylchloride compound to create a secure closure system. The thermoplastic PVC material is fire retardant with meeting UL 94, fungus resistant meeting Mil-Std-810D, and has excellence resistance to abrasion. The EZ-Track (PVC) is offered with a standard diameter of up to 0.44". However, two EZ-Track (PVC) tracks can be combined for up to 1” diameters, or adding to a PVC jacketing for larger diameters. The operational temperature range of -22°F to 221°F (-30°C to 105°C).


Reference Materials

EZ-Track® (PVC) Installation Instructions

Specifications

EZ-Track® (PVC)

EZ-Track® (PVC) Specifications:

EZ-Track (PVC) is a pressure track made from a single extruded polyvinylchloride compound to create a secure closure system. The thermoplastic PVC material is fire retardant with meeting UL 94, fungus resistant meeting Mil-Std-810D, and has excellence resistance to abrasion. The EZ-Track (PVC) is offered with a standard diameter of up to 0.44". However, two EZ-Track (PVC) tracks can be combined for up to 1” diameters, or adding to a PVC jacketing for larger diameters. The operational temperature range of -22°F to 221°F (-30°C to 105°C).

Composition Polyvinyl Chloride
Flame Retardant V-0 / UL 94
Profile Medium
Flat Thickness 0.020"
Tool Required Yes
Tool Required Yes (Slider Tool & Upgraded Pliers Available)
RoHS Compliant
Shelf Life 36 Months
Bundle Size Small - Medium (Typical Bundle Size: 7/16" - 4.0")
Ideal Application Smaller round jacketing that can be closed quickly and easily.
Elongation 320%
Durability Better
Minimum Operating Temperature -4 ° F (-20 ° C )
Maximum Operating Temperature 221 ° F (105 ° C )
Tensile Strength 15lbs/in-width (closure)

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2021 The Zippertubing® Company, Chandler, Arizona.
