EZ-Track® (TPU)
EZ-Track® (TPU)

EZ-Track® (TPU)

3

A halogen-free, flame-retardant, thermoplastic polyurethane extruded arrowhead and channel closure system.
  • Ideal closure option for clean rooms and the medical industry*
  • Extruded thermoplastic, polyurethane material
  • Halogen free and flame retardant

Material Specification No. 2020

Raw materials are not sold separately, please contact the sales department for any special requirements.

Details

Specifications

Print Datasheet


Details

EZ-Track (TPU) is the choice for the medical industry do to being a halogen-free closure system.

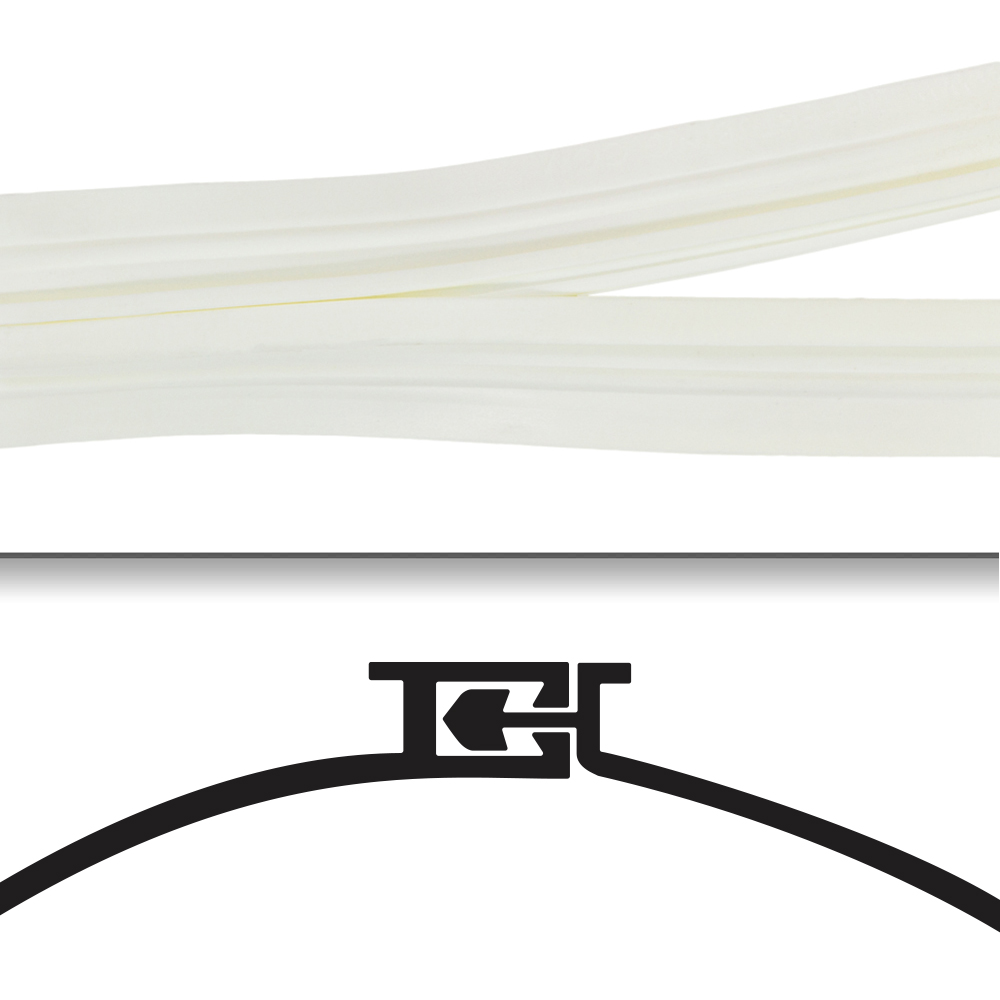

EZ-Track (TPU) is an extruded pressure track closure made of a thermoplastic polyurethane material. The arrowhead and channel interlocking system provides a seal around wires and cables. The white, halogen-free track is perfect for clean rooms and the medical industry. The EZ-Track (TPU) pressure track can be used for 0.4375” diameters as a single-extruded product, or can be paired with the TPU jacketing for wires and cables with larger diameters. The EZ-Track (TPU) can be closed with the SL-EZ Slider tool for smaller runs, and the ZTEZ-SP Plier for longer runs. The operational temperature range of EZ-Track (TPU) is -40°F to 257°F (-40°C to 125°C).



*EZ-Track (TPU) is not manufactured using a clean room in sterile conditions, but with the right procedures, it could be used in the medical field, including in hospitals, operating rooms, trauma centers, and emergency rooms.


Reference Materials

EZ-Track® (TPU) Installation Instructions

Specifications

EZ-Track® (TPU)

EZ-Track® (TPU) Specifications:

EZ-Track (TPU) is an extruded pressure track closure made of a thermoplastic polyurethane material. The arrowhead and channel interlocking system provides a seal around wires and cables. The white, halogen-free track is perfect for clean rooms and the medical industry. The EZ-Track (TPU) pressure track can be used for 0.4375” diameters as a single-extruded product, or can be paired with the TPU jacketing for wires and cables with larger diameters. The EZ-Track (TPU) can be closed with the SL-EZ Slider tool for smaller runs, and the ZTEZ-SP Plier for longer runs. The operational temperature range of EZ-Track (TPU) is -40°F to 257°F (-40°C to 125°C).



*EZ-Track (TPU) is not manufactured using a clean room in sterile conditions, but with the right procedures, it could be used in the medical field, including in hospitals, operating rooms, trauma centers, and emergency rooms.

Profile Medium
Material Thickness Variance +/- 0.005"
Tool Required Yes (Slider Tool & Upgraded Pliers Available)
RoHS Compliant
Shelf Life 60 months
Pull Force 15 LBF min
Elongation 350%
Material Thickness 0.021"
Durability Best
Halogen Free Yes
Minimum Operating Temperature -40 ° F (-40 ° C )
Maximum Operating Temperature 257 ° F (125 ° C )
Tensile Strength 30 MPA min
Flexibility Better

Available Attributes

Exterior Material Thermoplastic Polyurethane (TPU)
Material Color White

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2021 The Zippertubing® Company, Chandler, Arizona.
