PTG-5 - PTFE Coated Fiberglass Fabric - 5 Mil

High Performance PTFE Coated Fiberglass Jacketing, 5 Mil

Material Specification: 1107 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Mil-I-18746 Material
  • High & Low Temperature Resistance
  • Outstanding Chemical Resistance
  • Thin & Lightweight

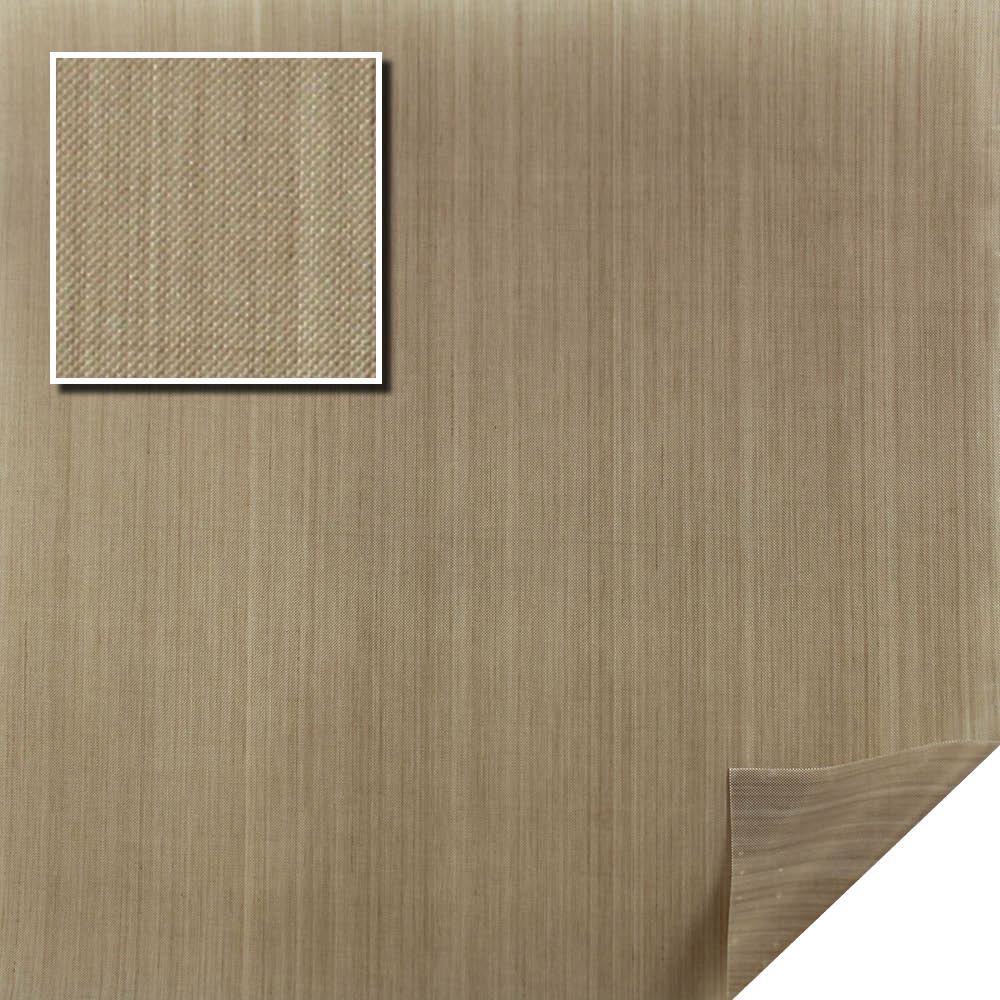

PTG-5 is a lightweight Polytetrafluoroethyene (PTFE) Teflon coated; fine weave fiberglass glass fabric that is .005" thick. The material conforms to Mil-I-18746 and the Teflon coating make this material ideal for high and low temperatures and/or applications requiring exposure to severe chemical environments. The material has a long history of usage in the Aerospace and Spacecraft industries and is most commonly supplied with Zippertubing's FEP Teflon Z-Track closure. The operational temperature range is -73°C to 260°C.

Specifications

  • Mil-Spec: Mil-I-18746 and AA-59300, Class 3
  • Break Strength: 70lb./1.0 wide strip
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Flammability: Self-extinguishing
  • Thickness: 0.005"
  • Material: PTFE Coated Fiberglass
  • Maximum Operating Temperature: 500°F
  • Minimum Operating Temperature: -99.4°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    FEP-5 Teflon Film - 5 Mil FEP-10 Teflon Flim - 10 Mil TREVIRA Canvas Fabric - 15 Mil
    NAME FEP-5 TEFLON FILM - 5 MIL FEP-10 TEFLON FLIM - 10 MIL TREVIRA CANVAS FABRIC - 15 MIL
    DESCRIPTION A 0.005" thick Teflon® film that is chemical resistant, abrasion resistant, moisture resistant, and non-flammable. High Performance FEP Teflon® Film, 10 Mil Lightweight Canvas Jacketing, 15 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Best Good
    Min Temperature Extreme Extreme Moderate
    Minimum Operating Temperature -238°F -238°F -40°F
    Max Temperature Extreme Extreme Moderate
    Maximum Operating Temperature 401°F 401°F 320°F
    Flexibility Good Best
    View View View

    PTG-5 - PTFE Coated Fiberglass Fabric - 5 Mil

    High Performance PTFE Coated Fiberglass Jacketing, 5 Mil

    Material Sprcification: 1107

    • Mil-I-18746 Material
    • High & Low Temperature Resistance
    • Outstanding Chemical Resistance
    • Thin & Lightweight
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: Mil-I-18746 and AA-59300, Class 3
  • Break Strength: 70lb./1.0 wide strip
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Flammability: Self-extinguishing
  • Thickness: 0.005"
  • Material: PTFE Coated Fiberglass
  • Maximum Operating Temperature: 500°F
  • Minimum Operating Temperature: -99.4°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Flexibility: Better
  • DESCRIPTION

    PTG-5 is a lightweight Polytetrafluoroethyene (PTFE) Teflon coated; fine weave fiberglass glass fabric that is .005" thick. The material conforms to Mil-I-18746 and the Teflon coating make this material ideal for high and low temperatures and/or applications requiring exposure to severe chemical environments. The material has a long history of usage in the Aerospace and Spacecraft industries and is most commonly supplied with Zippertubing's FEP Teflon Z-Track closure. The operational temperature range is -73°C to 260°C.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
