VNH-23 - PVC Coated Nylon Fabric - 23 Mil

Mil-Spec PVC Coated Nylon Jacket, 23 Mil

Material Specification: 1102 RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Mil-Spec Jacketing Product
  • Waterproof & Hydrocarbon Fluid Resistance
  • Flame Retardant, FAR 25.853
  • Extreme Low Temperature Performance
  • Excellent Abrasion Resistance

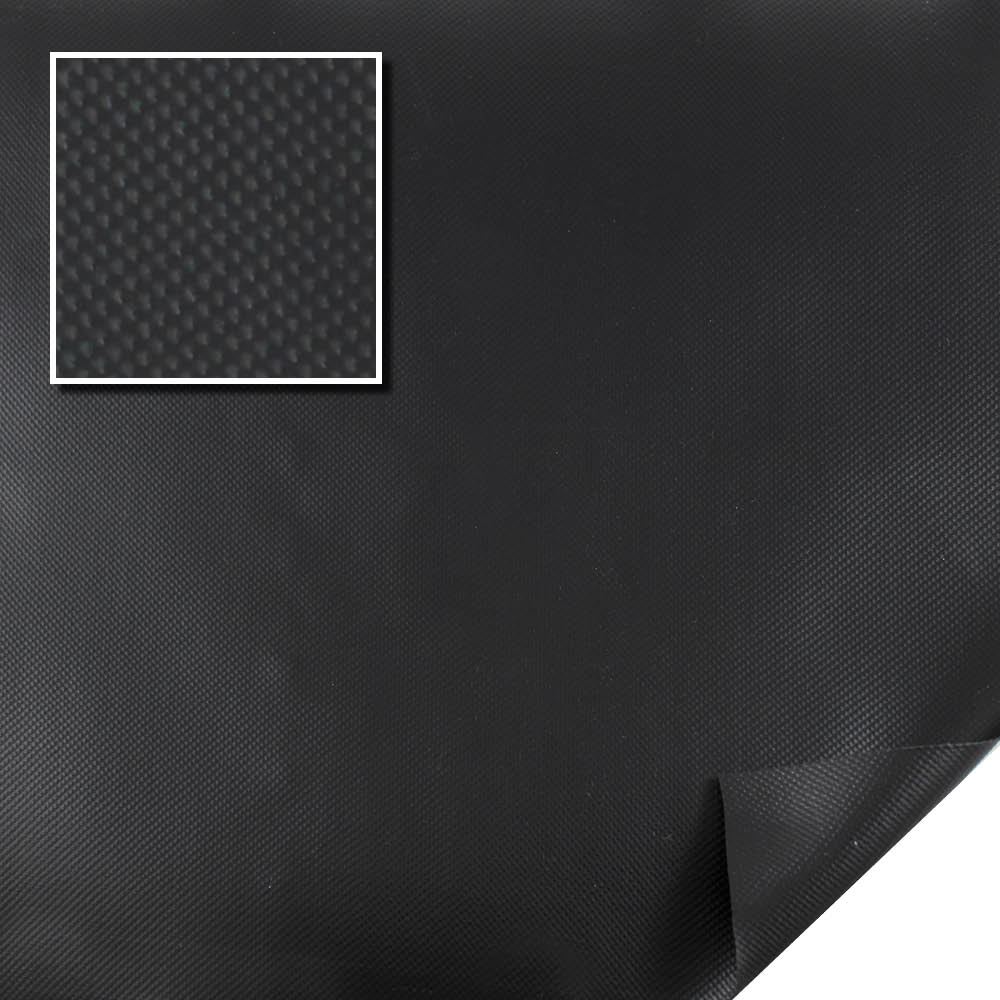

VNH-23 is a medium weight (.023") low temperature PVC coated Nylon fabric that conforms to Mil-C-20696 / Mil-PRF-20696, Type II, Class 2. The material is extremely flexible, even at low temperatures, has high break strength and is abrasion resistant. VNH-23 is ideal for outdoor applications where wire or cables are exposed to weathering, abuse, abrasion, rock impact or where tear strength is important. The material is flame retardant and will pass FAR 25.853, paragraph B requirements. This material comes standard in black or yellow but any FED-STD-595 color is available on a custom order basis. All Zippertubing closure styles are available. VNH-23 is an extremely versatile material and has been used in both commercial and military applications including aircraft anti-chaff protection, marine dockside cable protection and Antarctic Research programs. The material has an operating temperature range of -65° to 171 ° F (-54 ° to 77 ° C ).

Specifications

  • Mil-Spec: Mil-C-20696 / Mil-PRF-20696, Type II, Class 2
  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.023"
  • Maximum Operating Temperature: 171°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 225 Warp; 225 Fill
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    DVH-20 - PVC Coated Polyester - 20 Mil SRFG-32  - Silicone Coated Fiberglass Fabric - 32 Mil DVH-40 - PVC Coated Polyester - 40 Mil
    NAME DVH-20 - PVC COATED POLYESTER - 20 MIL SRFG-32 - SILICONE COATED FIBERGLASS FABRIC - 32 MIL DVH-40 - PVC COATED POLYESTER - 40 MIL
    DESCRIPTION General Purpose PVC Coated Polyester Jacket, 20 Mil Heavy Duty Silicone Coated Fiberglass Jacket, 32 Mil Heavy Duty PVC Coated Nylon/Polyester Jacket, 40 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Better Best
    Min Temperature Moderate Extreme Moderate
    Minimum Operating Temperature -30°F -65°F -40°F
    Max Temperature Low Extreme Low
    Maximum Operating Temperature 185°F 449°F 180°F
    Flexibility Good Good
    View View View

    VNH-23 - PVC Coated Nylon Fabric - 23 Mil

    Mil-Spec PVC Coated Nylon Jacket, 23 Mil

    Material Sprcification: 1102

    • Mil-Spec Jacketing Product
    • Waterproof & Hydrocarbon Fluid Resistance
    • Flame Retardant, FAR 25.853
    • Extreme Low Temperature Performance
    • Excellent Abrasion Resistance
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: Mil-C-20696 / Mil-PRF-20696, Type II, Class 2
  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.023"
  • Maximum Operating Temperature: 171°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 225 Warp; 225 Fill
  • Flexibility: Better
  • DESCRIPTION

    VNH-23 is a medium weight (.023") low temperature PVC coated Nylon fabric that conforms to Mil-C-20696 / Mil-PRF-20696, Type II, Class 2. The material is extremely flexible, even at low temperatures, has high break strength and is abrasion resistant. VNH-23 is ideal for outdoor applications where wire or cables are exposed to weathering, abuse, abrasion, rock impact or where tear strength is important. The material is flame retardant and will pass FAR 25.853, paragraph B requirements. This material comes standard in black or yellow but any FED-STD-595 color is available on a custom order basis. All Zippertubing closure styles are available. VNH-23 is an extremely versatile material and has been used in both commercial and military applications including aircraft anti-chaff protection, marine dockside cable protection and Antarctic Research programs. The material has an operating temperature range of -65° to 171 ° F (-54 ° to 77 ° C ).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
