High Strength Heat Reflective Woven Kevlar Fabric, Up to 177°C
- Aluminized Aramid (Kevlar) Fabric
- Moderately High Temperature Heat Reflective Cloth
- Custom Shapes Available
- Many Closures Available

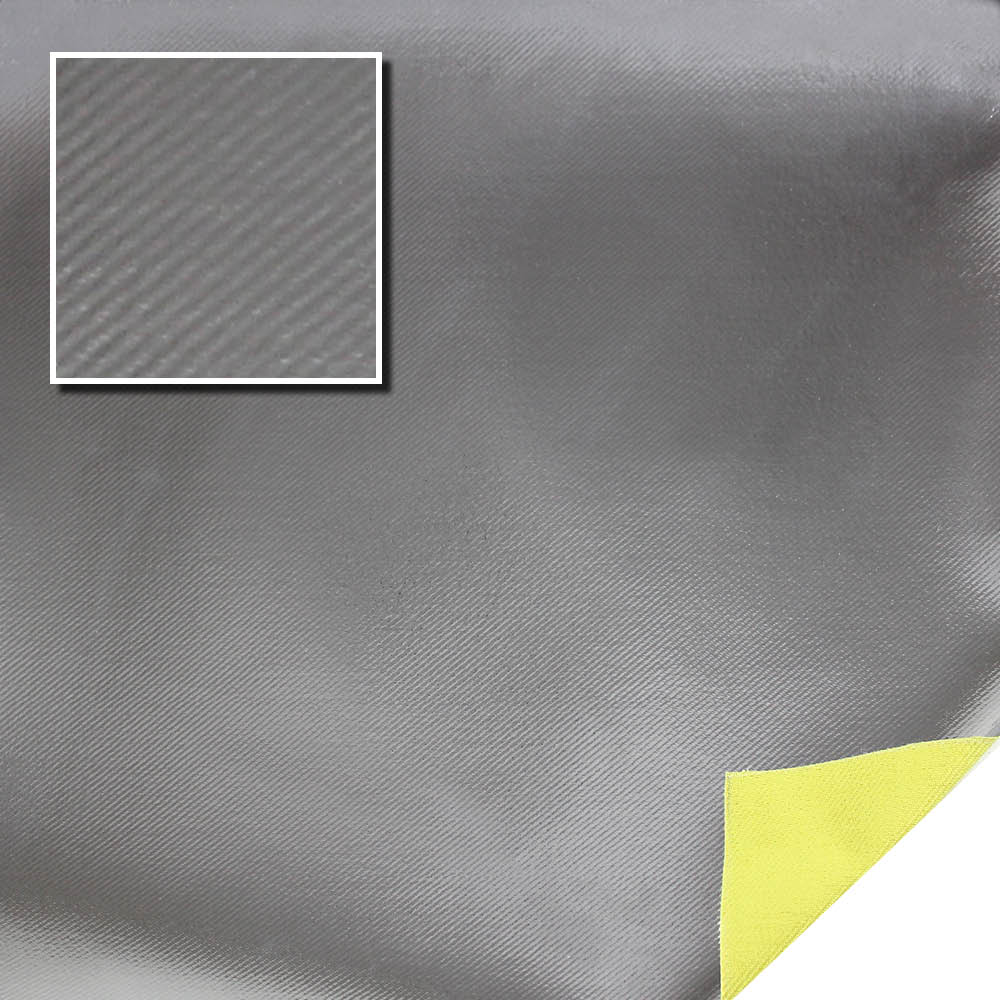

ALK-19 is an Aluminized woven Aramid Cloth (Kevlar) with very high structural strength, yet is flexible and capable of withstanding temperatures of 350°F (177°C) continuously. Ideal in applications where the jacket must act as the structural member for a cable assembly under high heat conditions.
|Tear Strength||26 lbs/min (warp) | 35 lbs/min (fill)|
|Shelf Life||60 months|
|Minimum Operating Temperature||-321 ° F (-196 ° C )|
|Maximum Operating Temperature||350 ° F (177 ° C )|
|Tensile Strength||350 lbs/min (warp) | 300 lbs/min (fill)|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2019 The Zippertubing® Company, Chandler, Arizona.
