24 AWG Braided Ground Straps with Drawing Number: 3401-24

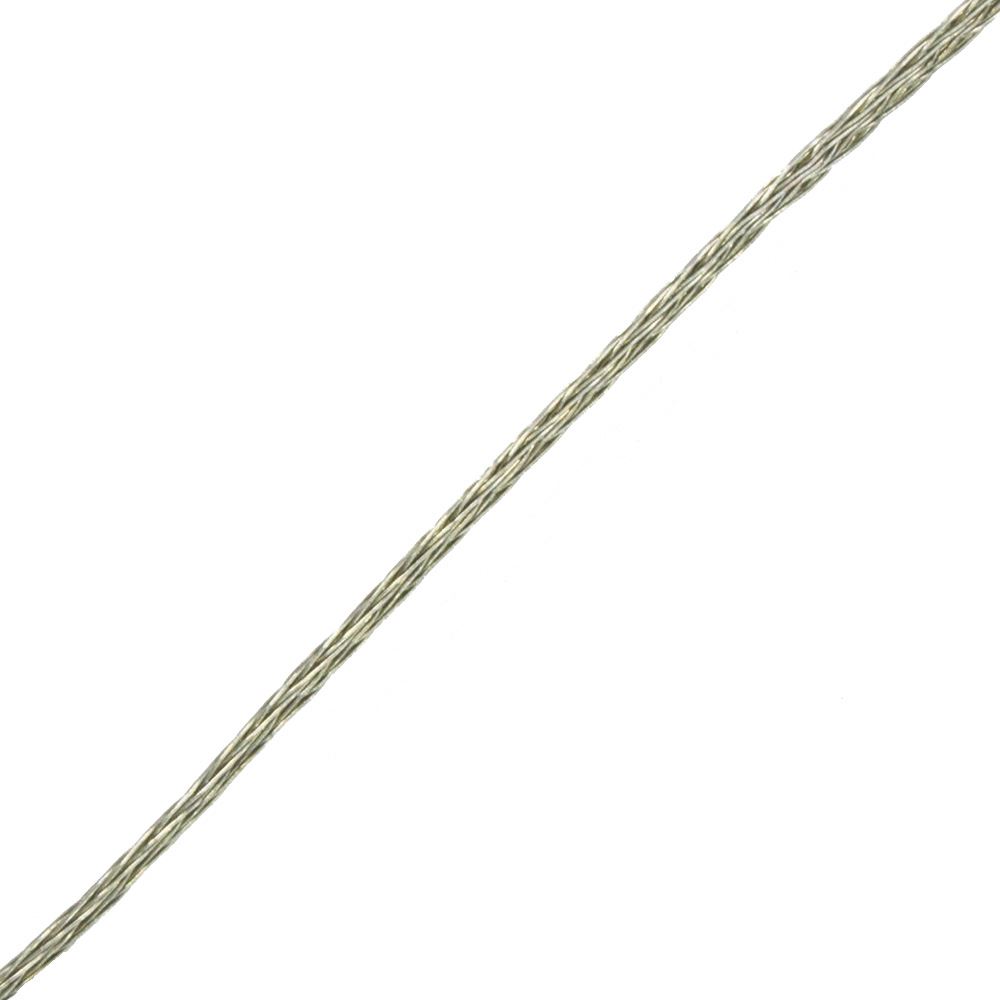

24 AWG Braided Ground Straps

Specification No. 3401-24

Tin Plated, Copper Wire formed into a Flat Configuration

Raw materials are not sold separately, please contact the sales department for any special requirements.

Material Specifications

Available Attributes

Wire Gauge 24 AWG
Flat Width 0.63"
Flat Thickness 0.020"

24 AWG Braided Ground Straps

Flat Width 0.063" +/- 10%
Gage 24 AWG
Current Capacity 6 AMPS
Flat Thickness 0.020"
Flat Thickness Variance +/- 0.002"
Construction 16 Carrier / 16 Ends
CMA (nom.) 400

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. Ā© 2019 The Zippertubing® Company, Chandler, Arizona.

Ground wires normally allow an electrical connection or transfer of the electromagnetic interference (EMI) from the component to a grounded connector. Zippertubing offers many different gauges of ground wires to meet the needs of your application.

Our ground wires are comprised of tin-plated, copper-wire that are braided and formed into a flat configuration. They are used as an electrical ground drain, confirm to Federal Specification QQ-W-343E and American Society for Testing and Materials ASTM-B-575B specifications.
