R-Track (PVC) Extruded Pressure Track

Light Duty, Thumb Pressure Closed, Extruded Interlock

Material Specification: 2002 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Small, Light Duty, "Zip-Lock" Closure
  • Compatible with all PVC Jacket Types
  • Ideal for Flat & Rectangular Cable
  • Good for Round Cable (up to 1.0")
  • Thumb closure or SLR Slider Tool

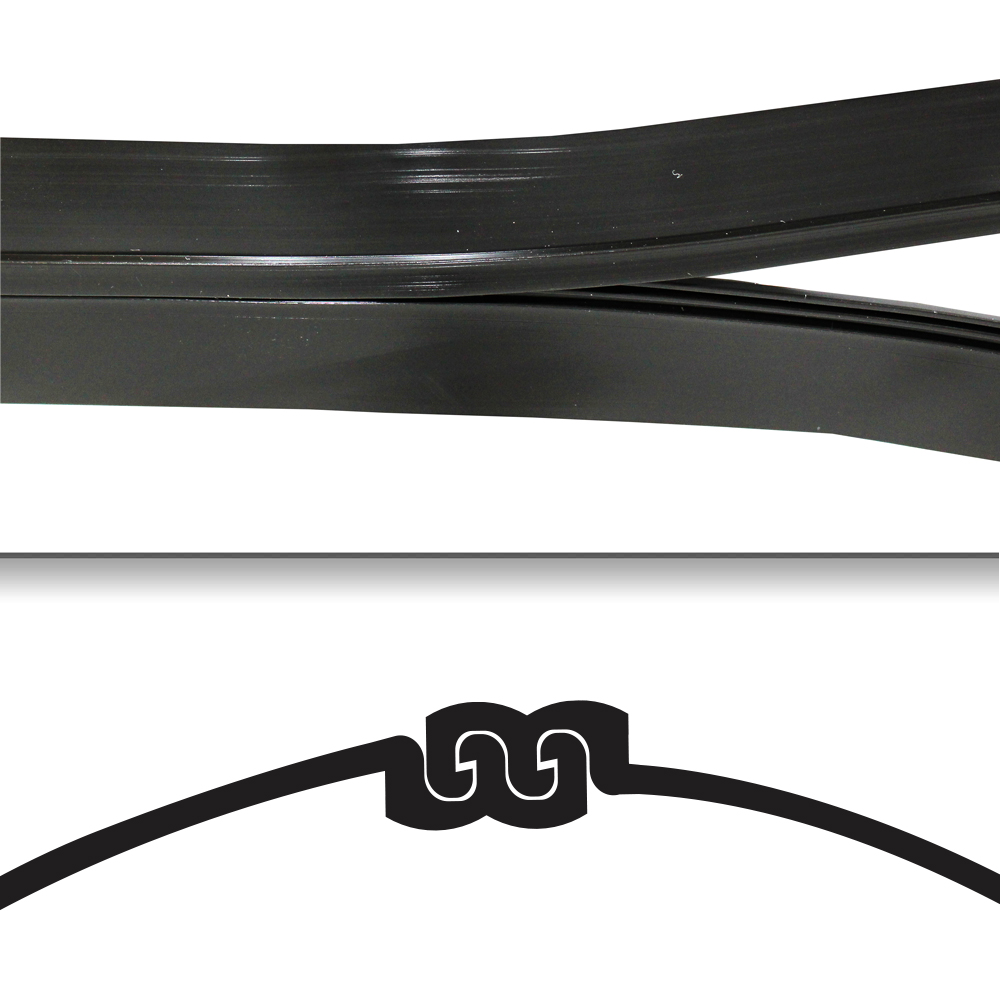

The R-Track closure is a small PVC based "Zip-Lock" style closure that is approximately 0.150" wide that can be utilized with all PVC based jacket materials. The interlock has an approximate hoop strength of 10 lbs/linear-inch, is flame retardant and available in Black or Clear (Clear is special order only) colors. R-Track can be closed using thumb pressure alone or with the aid of the "SLR" slider tool. It is best suited for Flat or Rectangular cable applications in sizes up to 1-1/2 inches wide.

Specifications

  • REACH: Compliant
  • Closure: Pressure Track
  • Elongation: 200% (min)
  • Flame Retardant: UL94 V-0
  • Bundle Size: 1.5" or Smaller
  • Height: Low
  • Color: Black
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -14°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 8 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Guides

    Track Closure vs Bend Location for all Zippertubing tracks

    Learn how to properly install Zip-On and Zip-Shield Zippertubing® products. In this article, we also highli...

    Read more

    How to install the R-Track

    R-Track can be closed using thumb pressure alone or with the aid of the “SLR” slider tool. Let's take a loo...

    Read more
    ZT-Zippertubing

    R-Track (PVC) Extruded Pressure Track

    Light Duty, Thumb Pressure Closed, Extruded Interlock

    Material Sprcification: 2002

    • Small, Light Duty, "Zip-Lock" Closure
    • Compatible with all PVC Jacket Types
    • Ideal for Flat & Rectangular Cable
    • Good for Round Cable (up to 1.0")
    • Thumb closure or SLR Slider Tool
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Closure: Pressure Track
  • Elongation: 200% (min)
  • Flame Retardant: UL94 V-0
  • Bundle Size: 1.5" or Smaller
  • Height: Low
  • Color: Black
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -14°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 8 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • DESCRIPTION

    The R-Track closure is a small PVC based "Zip-Lock" style closure that is approximately 0.150" wide that can be utilized with all PVC based jacket materials. The interlock has an approximate hoop strength of 10 lbs/linear-inch, is flame retardant and available in Black or Clear (Clear is special order only) colors. R-Track can be closed using thumb pressure alone or with the aid of the "SLR" slider tool. It is best suited for Flat or Rectangular cable applications in sizes up to 1-1/2 inches wide.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
