SHX-4 (SnCu) 4-Ply Tin-Plated Copper Wire Mesh

Name: SHX-4 (SnCu) 4-Ply Tin-Plated Copper Wire Mesh
Brand: zippertubing
Availability: InStock

Tin-plated copper wire EMI shielding mesh, 4-ply.

Material Specification: 3103 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Flexible and durable
Non-flammable

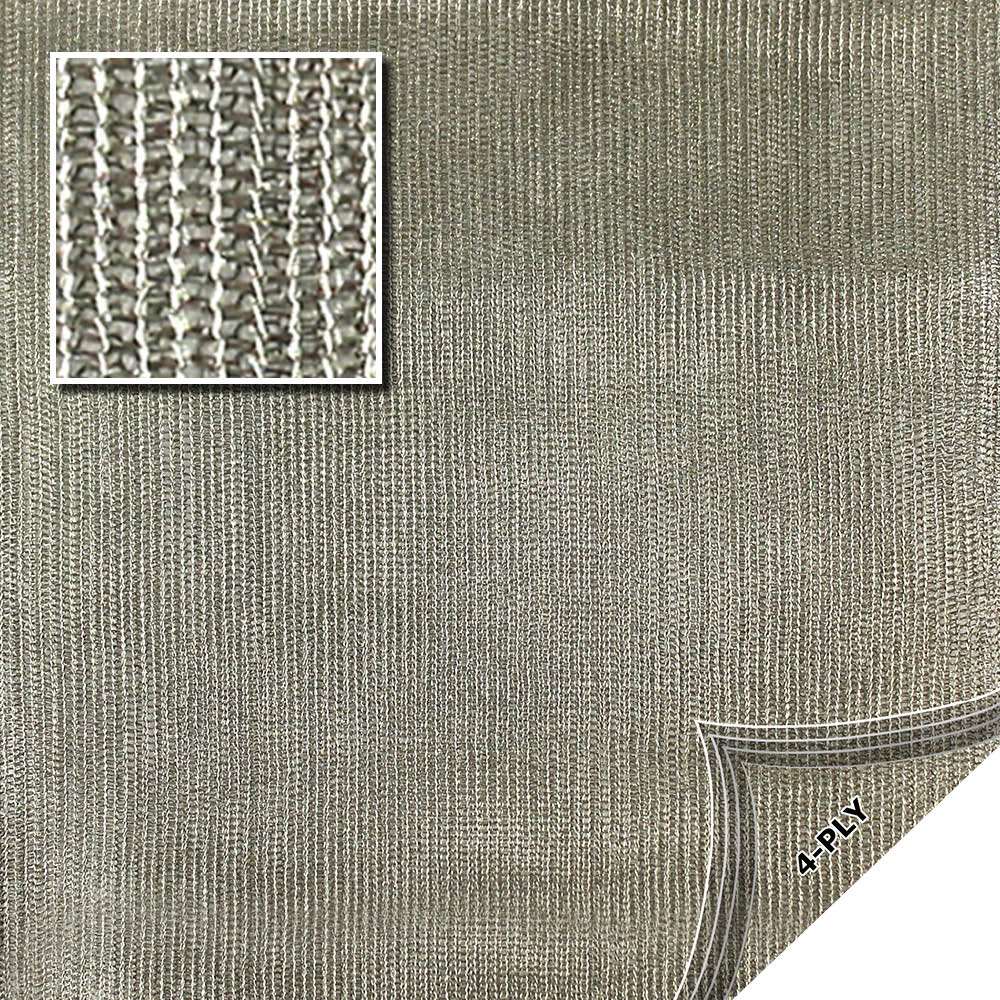

SHX-4 (SnCu) is a flexible EMI shielding mesh made of tin-plated copper wire. The double layer of mesh enables the EMI shielding properties to be durable and long-lived, and provides a strong barrier between the components and the environment. The knitted mesh also maintains constant window spacing during movement of the cable assembly. Unlike most tubular braids, SHX-4 will not change attenuation performance when articulated. SHX-4 (SnCu) is offered in a 36 AWG, and can be applied to most Zippertubing® jacket materials to create an EMI shielding solution that is ideal for applications that require durability in flexing and good EMI shielding.

Features

Offered in 36 AWG
Maintains attenuation performance when articulated
Can be applied to most Zippertubing® solutions to shield from EMI, RFI & EMF

Benefits

Good EMI shielding
Double layer of shielding mesh that creates 4-ply
Provides barrier between components and environment

Specifications

Mil-Spec: ASTM B33-10, MS3304 Type 1

REACH: Compliant

Elongation: 10% min per 10" length

Openings Per Inch: 10-13

Wire Size: 36 AWG

Material: Mesh

Color: Bright Tin

Material: Double knitted mesh tube, flattened

Maximum Operating Temperature: 400°F

Minimum Operating Temperature: -148°F

RoHS: RoHS-10

Shelf Life: 60 Months

Shielding: SHX-4 (SnCu)

Tensile Strength: .785 lbs (wire)

Picks Per Inch: 12-16

Shielding Effectiveness: Good

Flexibility: Best

Shielding Effectiveness

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
