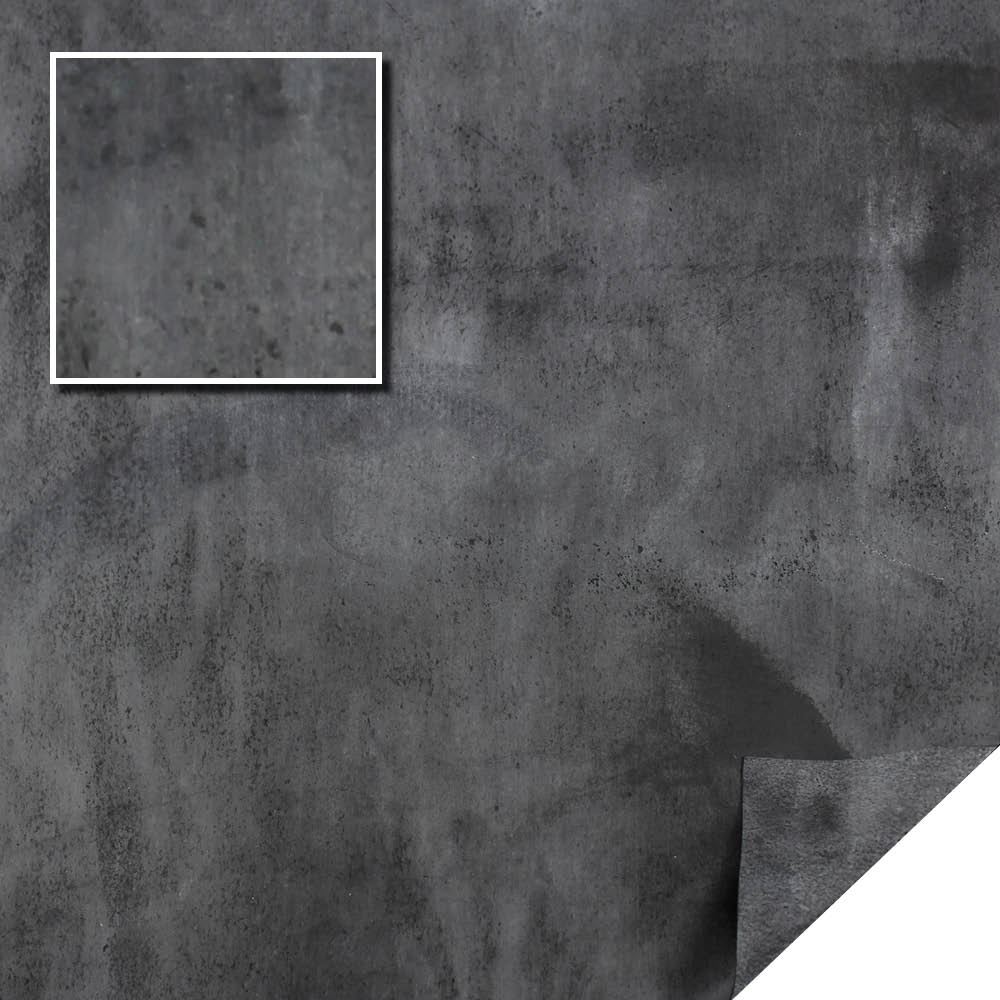

FSR-16

Viton®, High Performance , Fluorinated Synthetic Rubber Film, 16 Mil
  • Extremly Flexible, Rubber-Like Jacket
  • High Temperature (200 C)
  • Outstanding Fluid Resistance
  • Flame Retardant, Self-Extinguishing
  • Meets Mil-R-83248C, Type II, Class 1
  • -29° To 200°C Operational Limit

Material Specification No. 1008

Raw materials are not sold separately, please contact the sales department for any special requirements.

Details

Specifications

Print Datasheet


Details

FSR-16 is manufactured under the name Viton®. An extremely flexible Fluorinated Synthetic Rubber jacket material that has a soft rubber-like texture, outstanding fluid resistance and an operational temperature range from -29° to 200°C. Viton® is an extremely rugged material that meets the requirements of Mil-R83248C, Type II, Class 1. A FSR-16 jacket is ideal for severe duty aerospace and military applications and can be configured for round, flat and rectangular cable configurations with a variety of closure options. FSR-16 can be combined with most Zippertubing EMI Shielding materials to create flexible cable jackets that will meet the toughest environmental requirements.


Specifications

FSR-16

FSR-16 Specifications:

FSR-16 is manufactured under the name Viton®. An extremely flexible Fluorinated Synthetic Rubber jacket material that has a soft rubber-like texture, outstanding fluid resistance and an operational temperature range from -29° to 200°C. Viton® is an extremely rugged material that meets the requirements of Mil-R83248C, Type II, Class 1. A FSR-16 jacket is ideal for severe duty aerospace and military applications and can be configured for round, flat and rectangular cable configurations with a variety of closure options. FSR-16 can be combined with most Zippertubing EMI Shielding materials to create flexible cable jackets that will meet the toughest environmental requirements.

Flammability Self-extinguishing
Dielectric Strength 300 volt/mil
Fluid Resistance Excellent (Fuel, Synthetics, Petroleum)
Mil-Spec Mil-R-83248C, Type II, Class 1
RoHS-6 Compliant
Shelf Life 60 months
Elongation 125% (min)
Material Thickness 0.016"
Durability Better
Minimum Operating Temperature -20 ° F (-29 ° C )
Maximum Operating Temperature 392 ° F (200 ° C )
Tensile Strength 1,200 psi/min

Available Attributes

Material Color Gray

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2021 The Zippertubing® Company, Chandler, Arizona.
