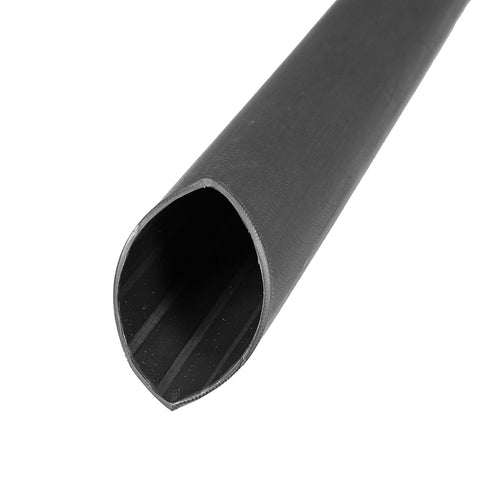

Heavy Wall Polyolefin Heat Shrink Tubing

Name: Heavy Wall Polyolefin Heat Shrink Tubing
Brand: zippertubing
Availability: InStock

Material Specification: 6007 UL Recognized

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Print Datasheet

Overview

Ideal heat shrink tubing for harsh environments
Flame retardant; UL 486D
Thick, heavy wall is abrasion resistant

The heavy wall polyolefin heat shrink tubing is made of a cross-linked polyolefin material. This heavy duty material is flame retardant per UL 486D, and is offered in black and red in a 3:1 shrink ratio. The heavy wall polyolefin heat shrink tubing has an operational temperature range of -67°F to 235°F (-55°C to 110°C).

Specifications

Elongation: per AMS DTL-23053/15

Flammability: Flame retardant (UL 486)

Material: Cross-linked Polyolefin Copolymer

Maximum Operating Temperature: 235°F

Minimum Operating Temperature: -67°F

Shelf Life: 60 Months

Shrink Ratio: 3:1

Tensile Strength: per AMS DTL-23053/15

Flexibility: Better

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Heavy Wall Polyolefin Heat Shrink Tubing

Material Sprcification: 6007

Ideal heat shrink tubing for harsh environments
Flame retardant; UL 486D
Thick, heavy wall is abrasion resistant

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Elongation: per AMS DTL-23053/15

Flammability: Flame retardant (UL 486)

Material: Cross-linked Polyolefin Copolymer

Maximum Operating Temperature: 235°F

Minimum Operating Temperature: -67°F

Shelf Life: 60 Months

Shrink Ratio: 3:1

Tensile Strength: per AMS DTL-23053/15

Flexibility: Better

DESCRIPTION

The heavy wall polyolefin heat shrink tubing is made of a cross-linked polyolefin material. This heavy duty material is flame retardant per UL 486D, and is offered in black and red in a 3:1 shrink ratio. The heavy wall polyolefin heat shrink tubing has an operational temperature range of -67°F to 235°F (-55°C to 110°C).

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
