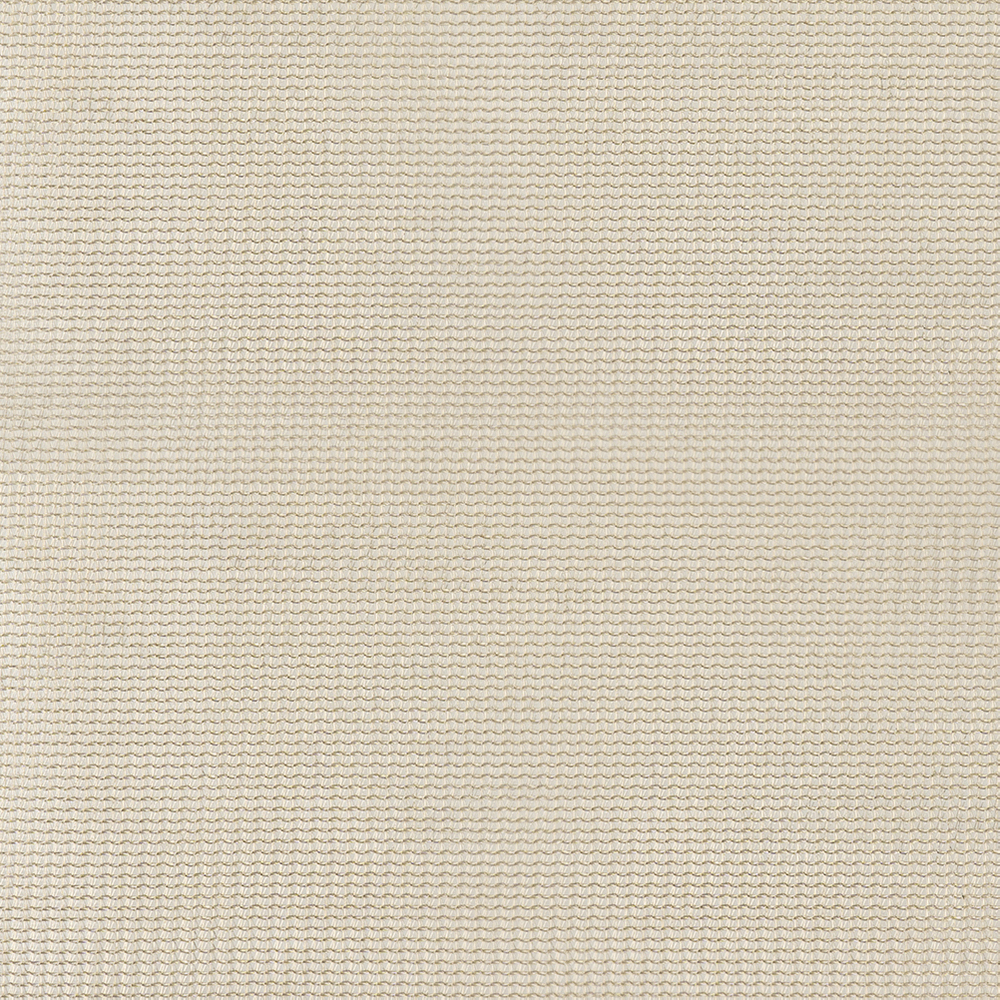

Sheer-Shield® is a lightweight, flexible, RoHS-complaint, nickel over copper polyester mesh that provides protection from EMI, RFI and corrosion.
- Shields EMI and RFI
- Lightweight, flexible and RoHS compliant
Sheer-Shield® is made from a thin polyester mesh, plated with copper then nickel, for protection against EMI and RFI. This RoHS-compliant material is lightweight, flexible and anti-corrosive; and does not flake or rub off during normal handling. Sheer-Shield® is nickel in color and has an operational temperature range from -40°F to 250°F (-40°C to 121°C).
|Surface Resistivity||<0.1 ohms/sq|
|Shielding Effectiveness||70/60 (100Mhz/1GHz)|
|Minimum Operating Temperature||-40 ° F (-40 ° C )|
|Maximum Operating Temperature||250 ° F (121 ° C )|
|Tensile Strength||20 lbs/in|
|Material Color||Dull Nickel|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2021 The Zippertubing® Company, Chandler, Arizona.
