ALHTG-65
O
3

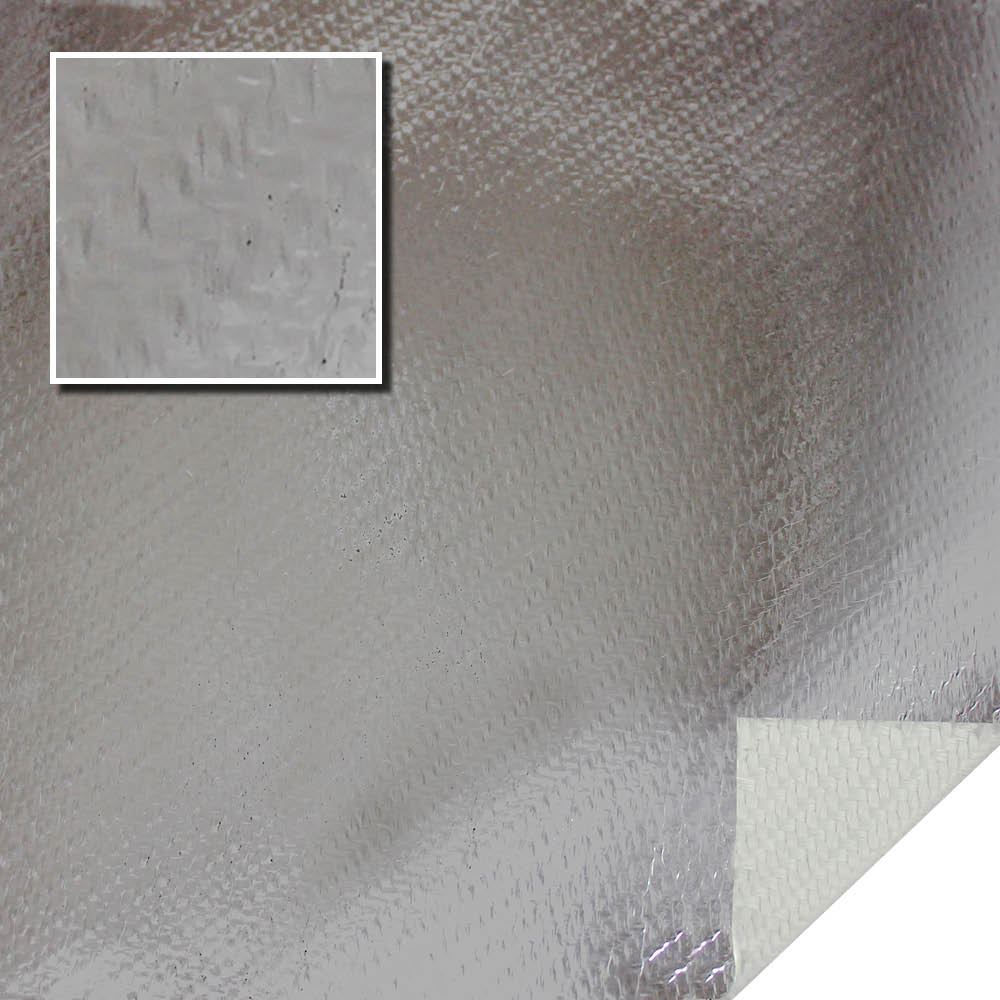

High Temperature Glass Fiber Jacket with Aluminum Foil, Up to 650°C
- High Temperature Heat Reflective Fiberglass
- Custom Shapes Available
- Many Closures Available
- 1,202°F (650°C) Operational Limit
Material Specification No. 1206
Details
ALHTG-65 is a heavy weight, .065" thick, mechanically bonded glass fiber cloth treated with a proprietary coating and laminated on one side with Aluminum Foil for high temperature applications up to 1,202°F (650°C). The base cloth material will stand short-term exposures as high as 1,650°F (899°C). ALHTG-65 is manufactured from long textile glass fibers and contains no binders, thereby, assuring insulation efficiency during extended periods of elevated temperatures; even with direct exposure to fire.
Specifications
| Tear Strength | 627 lbs/in. (warp) / 571 lbs.in (fill) |
|---|---|
| Flame Retardant | FED-STD-191 Method 5903 |
| REACH | Compliant |
| RoHS | RoHS-10 |
| Shelf Life | 60 months |
| Material Thickness | 0.065" |
| Minimum Operating Temperature | -32 ° F (-36 ° C ) |
| Maximum Operating Temperature | 1202 ° F (650 ° C ) |
| Tensile Strength | 10.16/in. (warp) / 8.64/cm (fill) |
| Flexibility | Better |
Available Attributes
| Material Color | Aluminum/White |
|---|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2021 The Zippertubing® Company, Chandler, Arizona.
