Specifications
Thin Wall Polyolefin

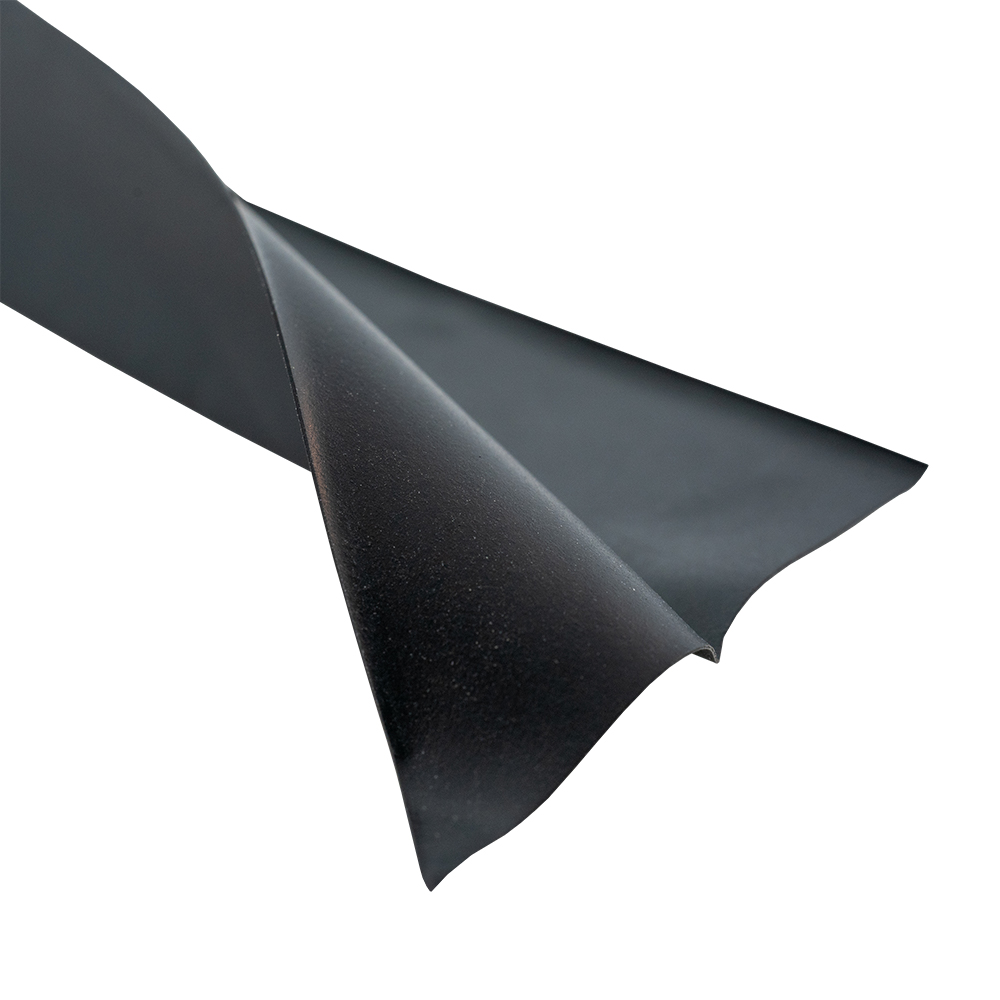

The thin wall polyolefin heat shrink tubing is made of a cross-linked polyolefin co-polymer material. This flexible material is UL-rated for flame retardancy per UL 224, VW-1. This polyolefin material is offered in black, white, clear, gray, red, yellow, orange, brown, green blue, and purple, and in a 2:1 shrink ratio. The thin wall polyolefin heat shrink tubing has an operational temperature range of -67°F to 257°F (-55°C to 125°C).
Specific Gravity |
1.35 (max.)
|
Flammability |
UL 224, VW-1
|
REACH |
Compliant
|
Dielectic Withstand |
2500v (after shrink)
|
RoHS |
RoHS-10
|
Abrasion Resistance |
Better
|
Shrink Temperature |
194°F (90°C)
|
Elongation |
100% (after shrink)
|
Minimum Operating Temperature |
-67 ° F (-55 ° C )
|
Maximum Operating Temperature |
257 ° F (125 ° C )
|
Tensile Strength |
1500 psi (after shrink)
|
Flexibility |
Best
|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2021 The Zippertubing® Company, Chandler, Arizona.
