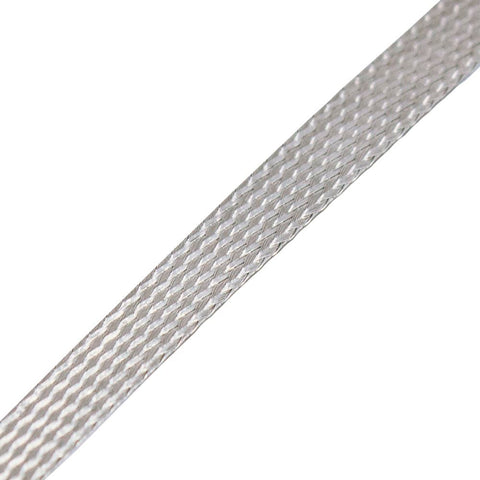

12 AWG Braided Ground Straps

Name: 12 AWG Braided Ground Straps
Brand: zippertubing
Availability: InStock

Tin Plated, Copper Wire formed into a Flat Configuration

Material Specification: 3401 RoHS

Select product options

Print Datasheet

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Ground wires normally allow an electrical connection or transfer of the electromagnetic interference (EMI) from the component to a grounded connector. Zippertubing® offers many different gauges of ground wires to meet the needs of your application.

Our ground wires are comprised of tin-plated, copper-wire that are braided and formed into a flat configuration. They are used as an electrical ground drain, confirm to Federal Specification QQ-W-343E and American Society for Testing and Materials ASTM-B-575B specifications.

Specifications

Circular Mil Area: 7,200

Global Gauge: 12 AWG

Construction: 48 Carrier / 288 Ends

Current Capacity: 46 AMPS

REACH: Compliant

Thickness: 0.030"

Thickness Variance: +/- 0.003"

RoHS: RoHS-10

Width: 0.375" +/- 10%

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

12 AWG Braided Ground Straps

Tin Plated, Copper Wire formed into a Flat Configuration

Material Sprcification: 3401-12

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Circular Mil Area: 7,200

Global Gauge: 12 AWG

Construction: 48 Carrier / 288 Ends

Current Capacity: 46 AMPS

REACH: Compliant

Thickness: 0.030"

Thickness Variance: +/- 0.003"

RoHS: RoHS-10

Width: 0.375" +/- 10%

DESCRIPTION

Ground wires normally allow an electrical connection or transfer of the electromagnetic interference (EMI) from the component to a grounded connector. Zippertubing® offers many different gauges of ground wires to meet the needs of your application.

Our ground wires are comprised of tin-plated, copper-wire that are braided and formed into a flat configuration. They are used as an electrical ground drain, confirm to Federal Specification QQ-W-343E and American Society for Testing and Materials ASTM-B-575B specifications.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
