Connector-Cover (Shielded) - EMI Shielded Cover

An EMI shielding cover for interconnected components that utilizes military-grade 63-10 jacketing, SH1 shielding foil, and R-Track pressure track.

Drawing Number(s): ZT02-06-001

Connector-Cover (Shielded) - EMI Shielded Cover
RoHS

Select product options

*Zippertubing recommends adding 0.125 inches (1/8 inch) to your bundle diameter for all track products.
Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT02-06-001-01-B-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

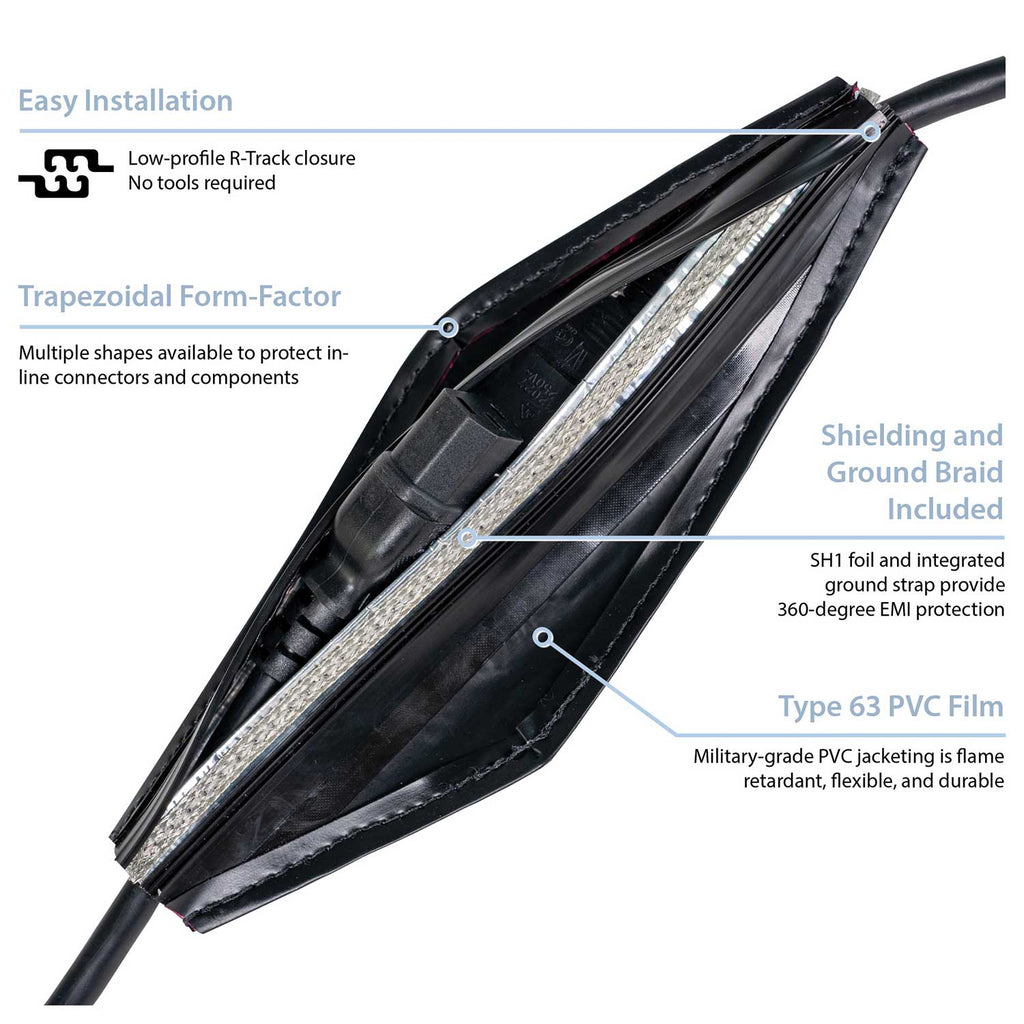

Connector-Cover (Shielded) Infographic
  • 63-10 jacketing meets MIL-I-631D, Type F, Form S and Grade C, Class 1, Category 1 of MIL-I-631
  • SH1 foil offers the best EMI shielding
  • R-Track pressure track is similar to zip-lock seal with only requiring thumb pressure to close

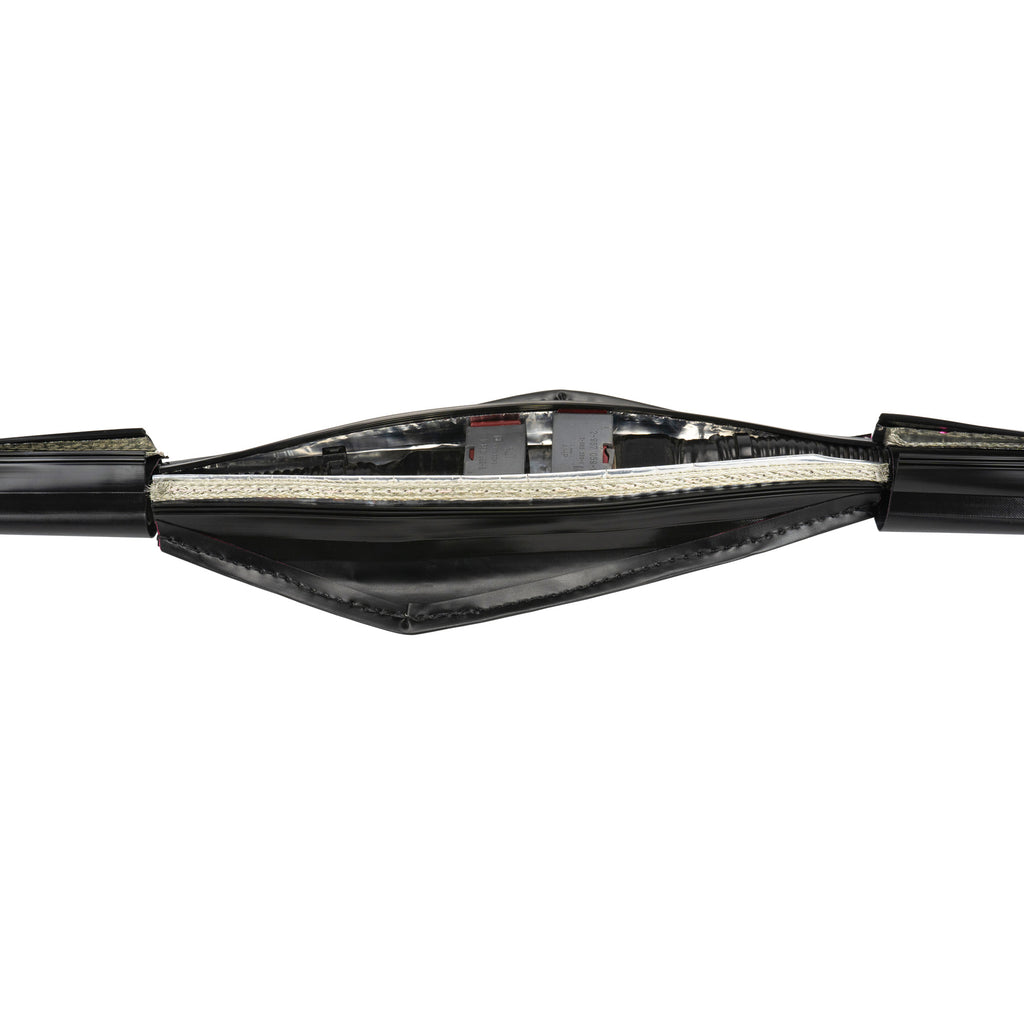

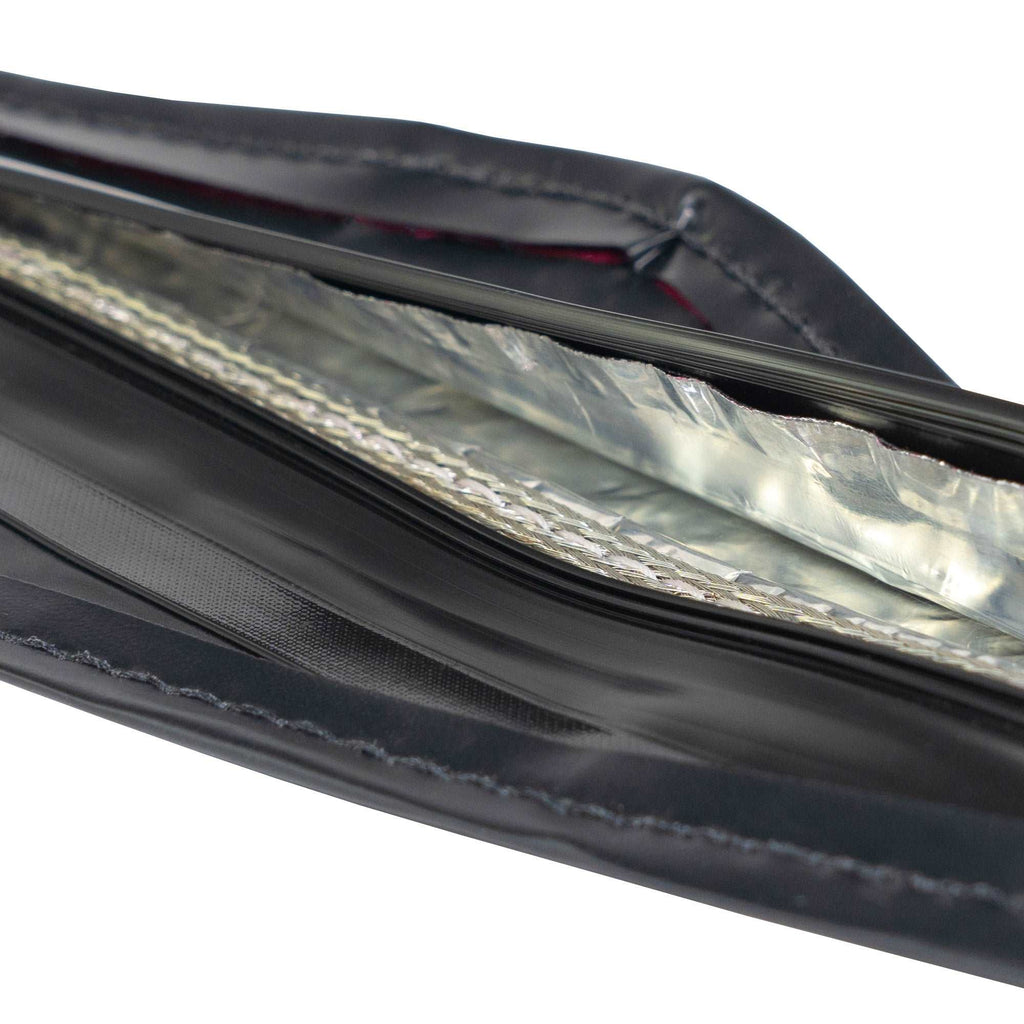

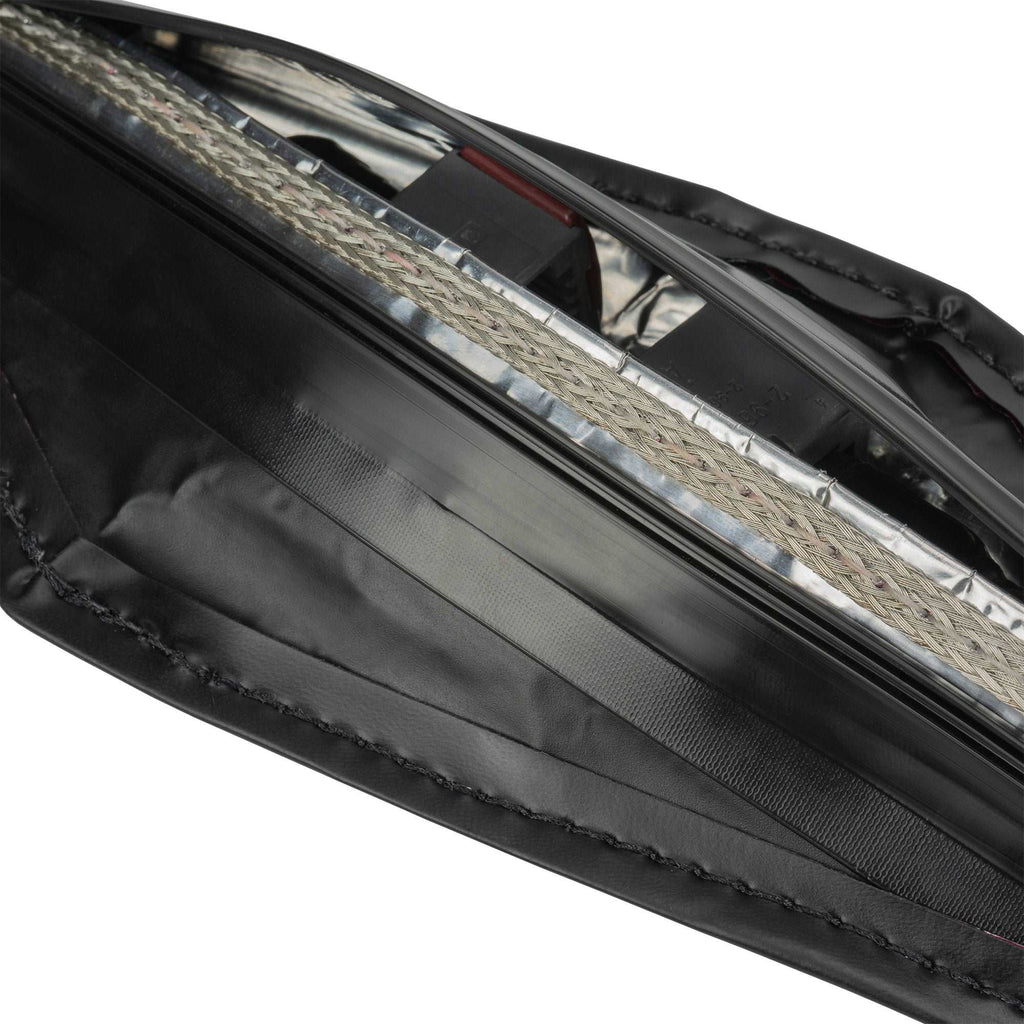

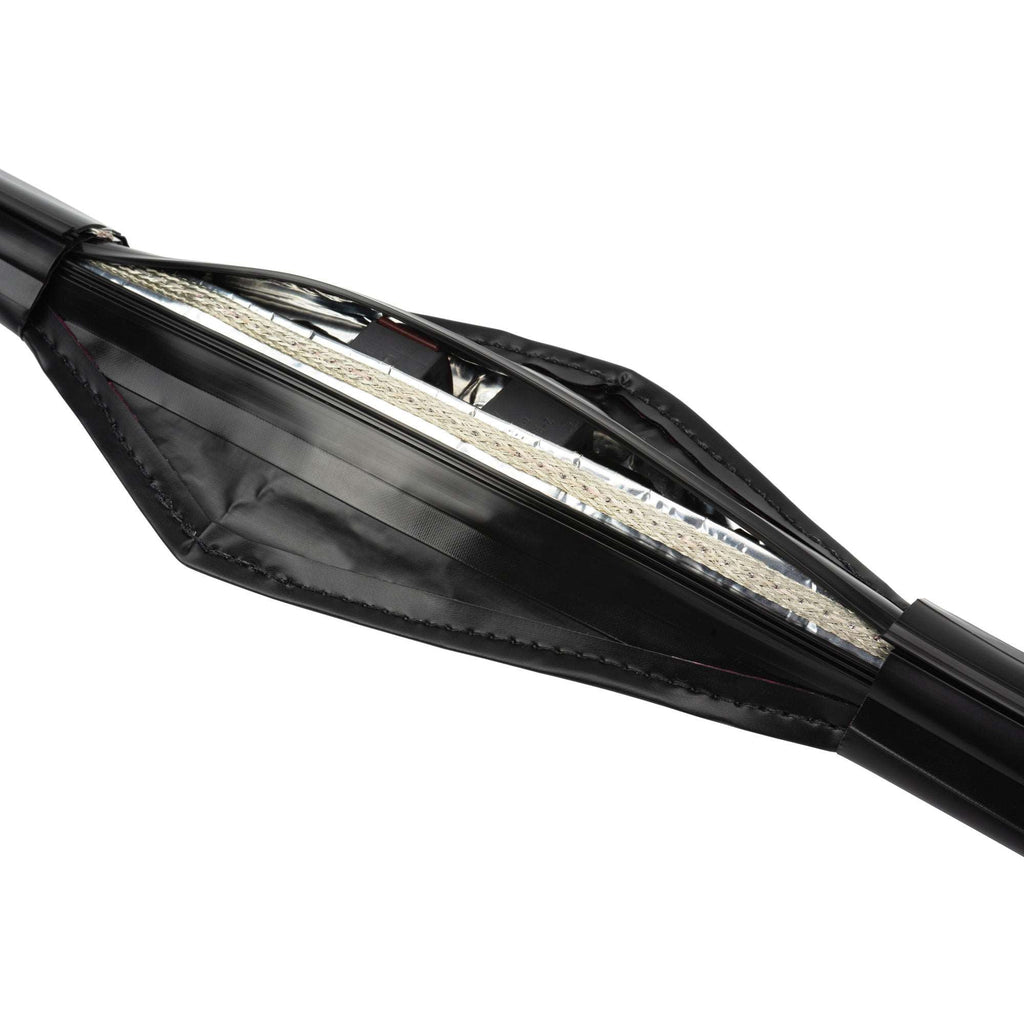

The Shielded Connector-Cover™ consist of a .010" thick high-temperature PVC jacket (Mil-I-631D, Type F, Form S, Grade C, Class 1) laminated to an SH1 Aluminum foil EMI shield, with a 15 AWG drain wire and an R-Track thumb pressure closure.

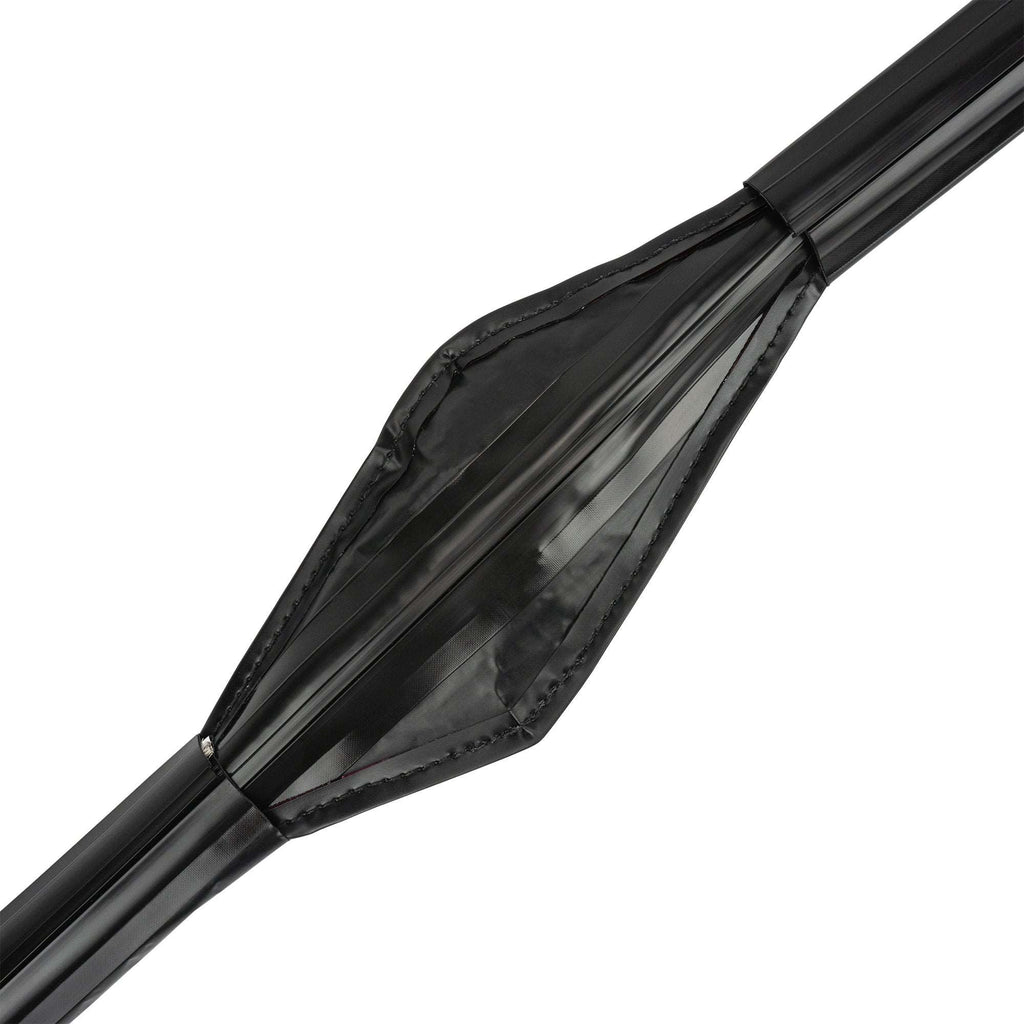

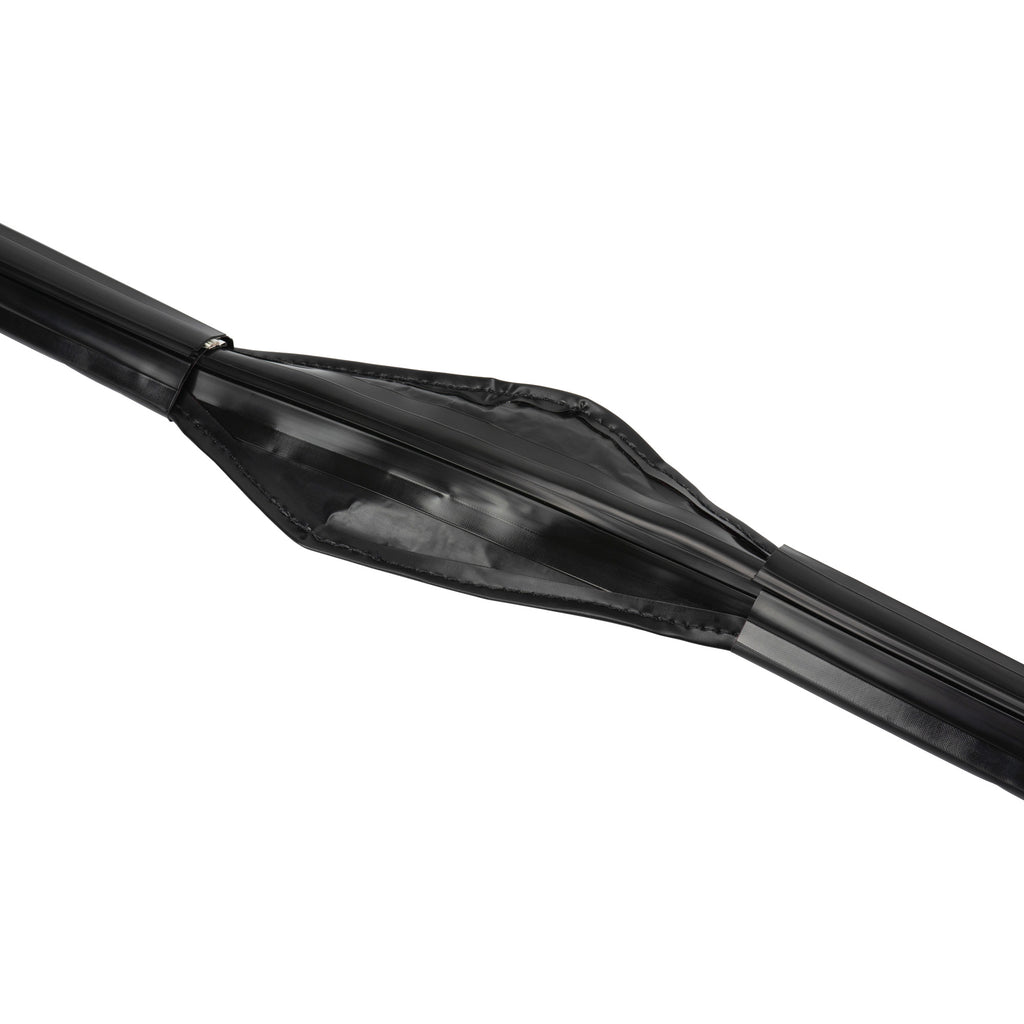

The covers come in five standard trapezoidal shapes that are intended to enclose and EMI-harden a mated connector pair. When used in conjunction with Zippertubing's SH1 and 63-10 cable jacketing they can create a fully EMI-hardened cable assembly. The Connector-Cover™ may also be cut to form tapered cone shapes that can carry the EMI shield over a connector mated to bulkhead or panel.

The SH1 EMI shield provides excellent shielding performance. The covers are flame-retardant, have good fluid resistance properties, and have an operating temperature range of -20° to 105°C (-4° to 221°F).

Overall Performance

  • Closure: R-Track (PVC)
  • Material: 63-10
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf-Life: 36 Months
  • Shielding: SH1 (Foil Shielding)
  • Shielding Material: Aluminum
  • Trapezoid Size: Custom Size

63-10

  • Mil-Spec: MIL-I-631D, Type F, Form S, Class I
  • REACH: Compliant
  • Copper Corrosion: Meets Mil-I-631D
  • Dielectric Volts/Mil: 600 volts/mil (0.010" thk.)
  • Dielectric Constant: 7.0 (1 kilocycle)
  • Elongation: 200% min., 450% max
  • Volume Resistivity: 1010 ohms/cm.
  • Flame Retardant: MIL-I-631
  • Fungicide: Does Not Support Growth
  • Color: Black
  • Thickness: 0.010"
  • Material: PVC Extruded Film
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Dissipation Factor: 0.14 min. (1 kilocycle)
  • Tensile Strength: 1,800 psi/min

R-Track (PVC)

    SH1 (Foil Shielding)

      Nylon Thread

        15 AWG Braided Ground Straps

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
          Z-3250-Tape EMI Shielding Tape  Z-Shield® (3250) EMI Shielding Wrap  Z-Shield® (Al) EMI Shielding Wrap
          NAME Z-3250-TAPE EMI SHIELDING TAPE  Z-SHIELD® (3250) EMI SHIELDING WRAP  Z-SHIELD® (AL) EMI SHIELDING WRAP
          DESCRIPTION A lightweight EMI shielding tape that is flexible, durable and corrosion resistant for a variety of applications.  A wrap-around solution that has a protective jacketing paired with an EMI shielding cloth and adhesive closure.  A wrap-around, EMI-shielding solution featuring a flame-retardant polyurethane jacket and high-performing shielding foil.
          Closure Tape (Electrically Conductive)  Adhesive  Adhesive
          RoHS RoHS-10  RoHS-10  RoHS-10
          Abrasion Resistance
          Installation Type Wrap-Around  Wrap-Around  Wrap-Around
          Purpose Tape  Sleeve  Sleeve
          Min Temperature Moderate  Moderate  Extreme
          Minimum Operating Temperature °F  -49°F  -65°F
          Max Temperature Moderate  Low  Low
          Maximum Operating Temperature 158°F  176°F  250°F
          Flexibility
          View  View  View
          Zippertubing
          Connector-Cover (Shielded) Infographic

          Connector-Cover (Shielded) - EMI Shielded Cover

          An EMI shielding cover for interconnected components that utilizes military-grade 63-10 jacketing, SH1 shielding foil, and R-Track pressure track.

          Drawing Number(s): ZT02-06-001

          Selected Part Number: ZT02-06-001-01-B-B

        • 63-10 jacketing meets MIL-I-631D, Type F, Form S and Grade C, Class 1, Category 1 of MIL-I-631
        • SH1 foil offers the best EMI shielding
        • R-Track pressure track is similar to zip-lock seal with only requiring thumb pressure to close
        • Connector Cover (Shielded)
          Connector Cover (Shielded) Electrical Cable Shielding
          Connector Cover (Shielded) Shielded Cable Connectors
          Connector Cover (Shielded) EMC Shielding Solutions

          Features

        • Can be engineered for custom shapes and sizes
        • Optional braided wire for grounding capabilities
        • Operational temperature range of -4°F to 221°F (-20°C to 105°C)
        • Benefits

        • Installs easily around joined components to avoid disconnection or disassembly
        • Pressure track can be closed with thumb pressure or SLR Slider tool
        • Shielding foil protects from EMI, RFI, and EMF
        • Connector-Cover (Shielded) - EMI Shielded Cover

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

          SHIELDING EFFECTIVENESS - SH1 (Foil Shielding)

          ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

          Connector-Cover (Shielded) - EMI Shielded Cover

          MATERIAL SPECIFICATIONS
