ISOSAM-300/5 - Thermal Protection with High Temp Felt

Name: ISOSAM-300/5 - Thermal Protection with High Temp Felt
Brand: Zippertubing
SKU: 1224
Availability: InStock

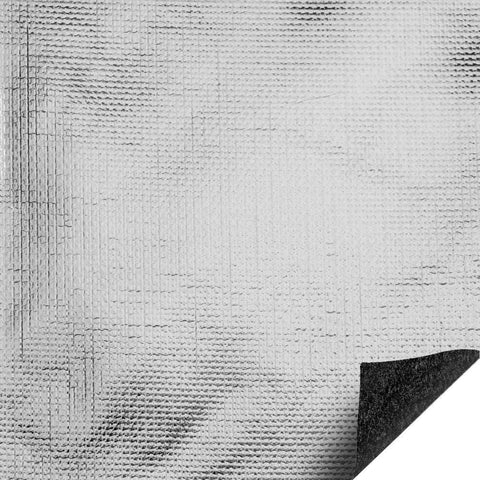

A thick wall composite material consisting of aluminized polyurethane woven fiberglass for moderate temperature heat barrier protection.

Material Specification: RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

ISOSAM-300/5 provides heat barrier protection by utilizing a moderate-temperature composite material consisting of aluminum foil bonded to fiberglass with a special HT-adhesive. On the reverse side a 4.5mm 100% Preox fiber felt layer is laminated to the material, which assists with heat insulation and abrasion resistance.

Heat shielding materials are commonly used throughout the automotive industry in various applications. For instance, to protect critical engine wiring, prevent vapor lock, and improve vehicle efficiency by blocking radiant heat caused by temperatures under the hood.

ISOSAM-300/5 has an operational temperature range of -40°F to 392°F (-40°C to 200°C) with a maximum of 482°F (250°C) for a short duration.

Specifications

REACH: Compliant

Thickness: .157" +/- 15%

Material: Aluminized Polyurethane Woven Fiberglass

Maximum Operating Temperature: 392°F

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Tear Strength: >220 N/cm (warp) | >180 N/cm (fill)

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

ISOSAM-300/5 - Thermal Protection with High Temp Felt

A thick wall composite material consisting of aluminized polyurethane woven fiberglass for moderate temperature heat barrier protection.

Material Sprcification: 1224

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

REACH: Compliant

Thickness: .157" +/- 15%

Material: Aluminized Polyurethane Woven Fiberglass

Maximum Operating Temperature: 392°F

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Tear Strength: >220 N/cm (warp) | >180 N/cm (fill)

DESCRIPTION

ISOSAM-300/5 provides heat barrier protection by utilizing a moderate-temperature composite material consisting of aluminum foil bonded to fiberglass with a special HT-adhesive. On the reverse side a 4.5mm 100% Preox fiber felt layer is laminated to the material, which assists with heat insulation and abrasion resistance.

Heat shielding materials are commonly used throughout the automotive industry in various applications. For instance, to protect critical engine wiring, prevent vapor lock, and improve vehicle efficiency by blocking radiant heat caused by temperatures under the hood.

ISOSAM-300/5 has an operational temperature range of -40°F to 392°F (-40°C to 200°C) with a maximum of 482°F (250°C) for a short duration.
