NET-30 - Open Weave PVC Coated Polyester - 30 Mil

Name: NET-30 - Open Weave PVC Coated Polyester - 30 Mil
Brand: zippertubing
Availability: InStock

Open Weave PVC Coated Polyester Jacket, 30 Mil

Material Specification: 1106

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Open Weave Construction
Excellent Abrasion Resistance
Good Flexibility
Flame Retardant

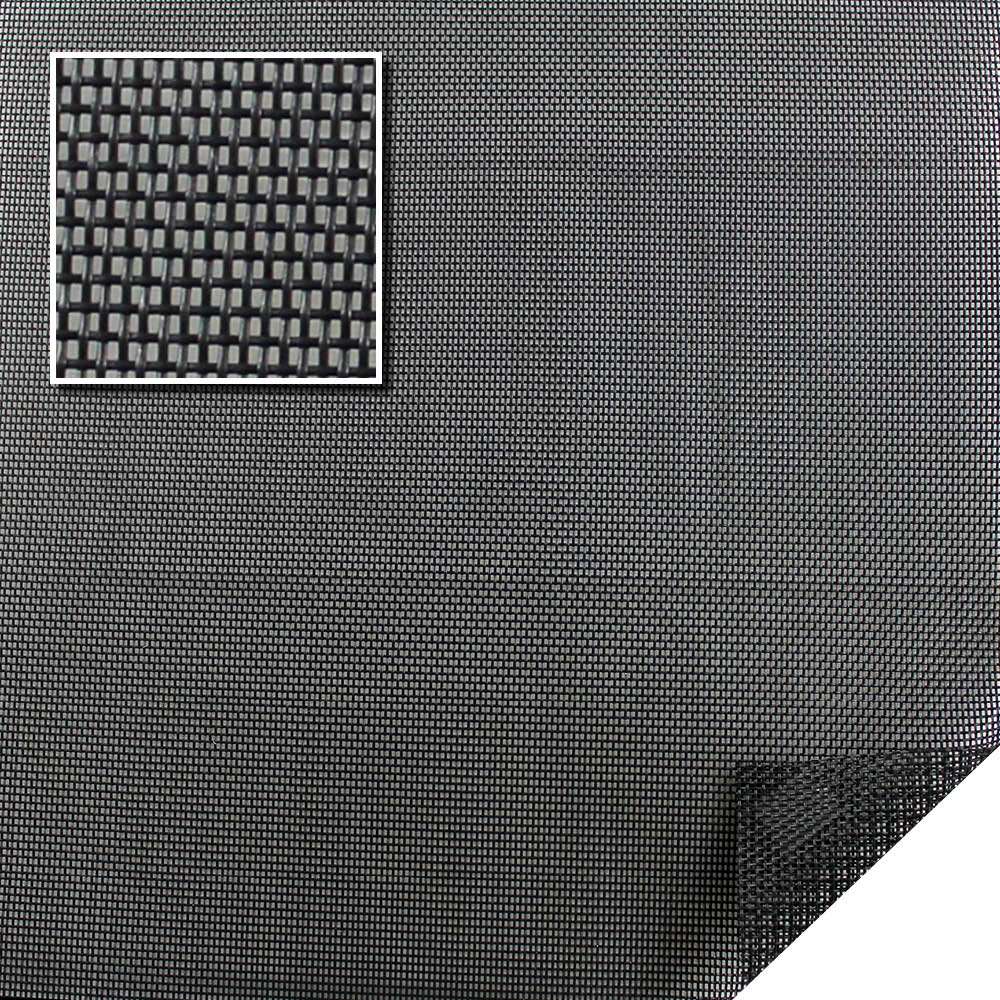

NET-30 is heavy weight (30-mils) woven construction of open weave Polyester fibers that have a flame retardant PVC coating. This jacket material is designed to permit bundling, protection and visibility of the encased wires and/or cables. In addition, the material provides a 34 percent open weave construction that enables air and/or water to freely pass through the jacket. NET-30 is available with most Zippertubing Track closure styles. The material is flame retardant to FED L-S-125B and has an operational temperature range of -22°F to 140°F.

Specifications

Break Strength: 385 lbs/min (Warp); 255 lbs/min (Fill)

Flame Retardant: FS L-S-125B - 10 sec. max.

Thickness: 0.030"

Material: PVC-Coated Polyester

Maximum Operating Temperature: 140°F

Minimum Operating Temperature: -22°F

RoHS: RoHS-6

Shelf Life: 36 Months

Flexibility: Good

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar Materials


NAME	VNH-23 - PVC COATED NYLON FABRIC - 23 MIL	DVH-40 - PVC COATED POLYESTER - 40 MIL
DESCRIPTION	Mil-Spec PVC Coated Nylon Jacket, 23 Mil	Heavy Duty PVC Coated Nylon/Polyester Jacket, 40 Mil
RoHS	RoHS-10	RoHS-10
Abrasion Resistance	Better	Best
Min Temperature	Extreme	Moderate
Minimum Operating Temperature	-65°F	-40°F	°F
Max Temperature	Low	Low
Maximum Operating Temperature	171°F	180°F	°F
Flexibility	Better	Good
	View	View

NET-30 - Open Weave PVC Coated Polyester - 30 Mil

Open Weave PVC Coated Polyester Jacket, 30 Mil

Material Sprcification: 1106

Open Weave Construction
Excellent Abrasion Resistance
Good Flexibility
Flame Retardant

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Break Strength: 385 lbs/min (Warp); 255 lbs/min (Fill)

Flame Retardant: FS L-S-125B - 10 sec. max.

Thickness: 0.030"

Material: PVC-Coated Polyester

Maximum Operating Temperature: 140°F

Minimum Operating Temperature: -22°F

RoHS: RoHS-6

Shelf Life: 36 Months

Flexibility: Good

DESCRIPTION

NET-30 is heavy weight (30-mils) woven construction of open weave Polyester fibers that have a flame retardant PVC coating. This jacket material is designed to permit bundling, protection and visibility of the encased wires and/or cables. In addition, the material provides a 34 percent open weave construction that enables air and/or water to freely pass through the jacket. NET-30 is available with most Zippertubing Track closure styles. The material is flame retardant to FED L-S-125B and has an operational temperature range of -22°F to 140°F.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
