PVC-coated PET Material

Name: PVC-coated PET Material
Brand: zippertubing
Availability: InStock

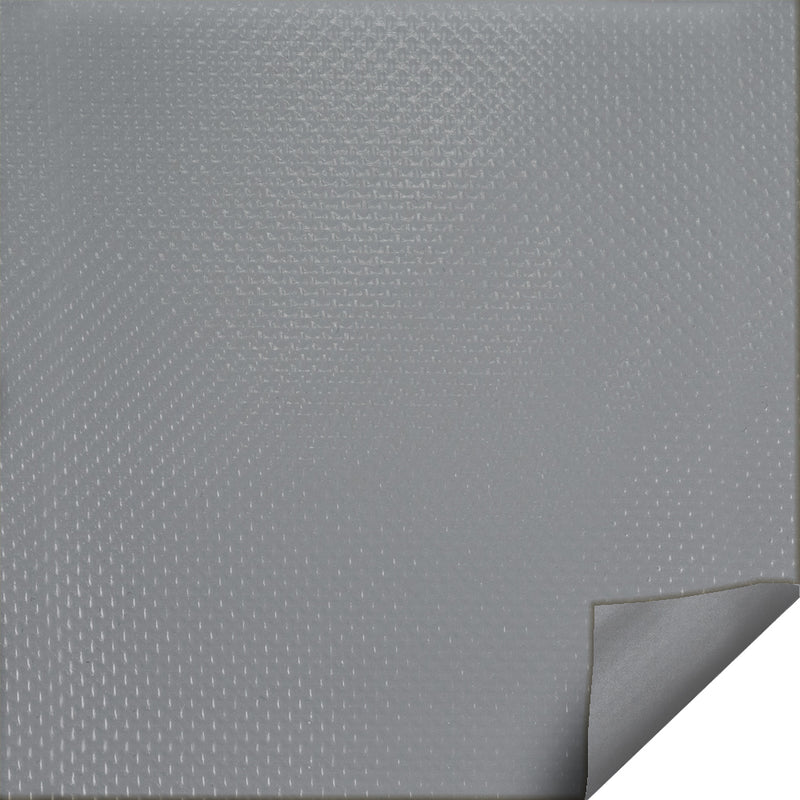

A lightweight, abrasion-resistant polyester fabric that is coated with a fire-retardant PVC.

Material Specification: 1117 UL Recognized

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

UL-rated for flammability meeting UL94 VTM-0
Abrasion resistant yet lightweight jacketing
Available in gray, black, and other colors may also be available

PVC-coated PET is a 0.014” thick, lightweight general-purpose jacketing. The material meets UL94 VTM-0 for flammability. There are six colors available, making this material ideal for applications that require color-coding. This jacketing is versatile and can be paired with snap buttons, pressure tracks, zippers, or an adhesive closure. The operational temperature range is -40°F to 179°F (-40°C to 82°C).

Specifications

Base Fabric: Polyester (PET)

Surface Resistivity: 1.6 x 10-14 ohms-sq/cm.

Coating: Polyvinylchloride

Dielectric Volts/Mil: 3.34 @ 50 Hz

Elongation: 30% (Warp & Fill)

Flame Retardant: UL94, VTM -0

Thickness: 0.014"

Maximum Operating Temperature: 179°F

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Tensile Strength: Tounge - 17.75 lbs. (Warp) & 13.25 lbs. (Fill) | Grab - 99.25 lbs. (Warp & Fill)

Flexibility: Better

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar Materials


NAME	RPA-14 - POLYURETHANE COATED ARAMID FABRIC - 14 MIL	RPH-14 - POLYURETHANE COATED POLYESTER FABRIC - 14 MIL	FRC-15 CANVAS FABRIC - 15 MIL
DESCRIPTION	A Strong, Medium-Weight, Polyurethane Coated Aramid Fabric	A Flexible, Medium Weight, Polyurethane Coated Polyester Fabric, 14 mil	Lightweight Multi-Purpose Canvas Jacket, 15 Mil
RoHS	RoHS-10	RoHS-10
Abrasion Resistance	Best	Best
Min Temperature	Low	Extreme	Moderate
Minimum Operating Temperature	-4°F	-67°F	-22°F
Max Temperature	Moderate	Moderate	Low
Maximum Operating Temperature	302°F	356°F	140°F
Flexibility	Better	Better
	View	View	View

PVC-coated PET Material

A lightweight, abrasion-resistant polyester fabric that is coated with a fire-retardant PVC.

Material Sprcification: 1117

UL-rated for flammability meeting UL94 VTM-0
Abrasion resistant yet lightweight jacketing
Available in gray, black, and other colors may also be available

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Base Fabric: Polyester (PET)

Surface Resistivity: 1.6 x 10-14 ohms-sq/cm.

Coating: Polyvinylchloride

Dielectric Volts/Mil: 3.34 @ 50 Hz

Elongation: 30% (Warp & Fill)

Flame Retardant: UL94, VTM -0

Thickness: 0.014"

Maximum Operating Temperature: 179°F

Minimum Operating Temperature: -40°F

RoHS: RoHS-10

Tensile Strength: Tounge - 17.75 lbs. (Warp) & 13.25 lbs. (Fill) | Grab - 99.25 lbs. (Warp & Fill)

Flexibility: Better

DESCRIPTION

PVC-coated PET is a 0.014” thick, lightweight general-purpose jacketing. The material meets UL94 VTM-0 for flammability. There are six colors available, making this material ideal for applications that require color-coding. This jacketing is versatile and can be paired with snap buttons, pressure tracks, zippers, or an adhesive closure. The operational temperature range is -40°F to 179°F (-40°C to 82°C).

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
