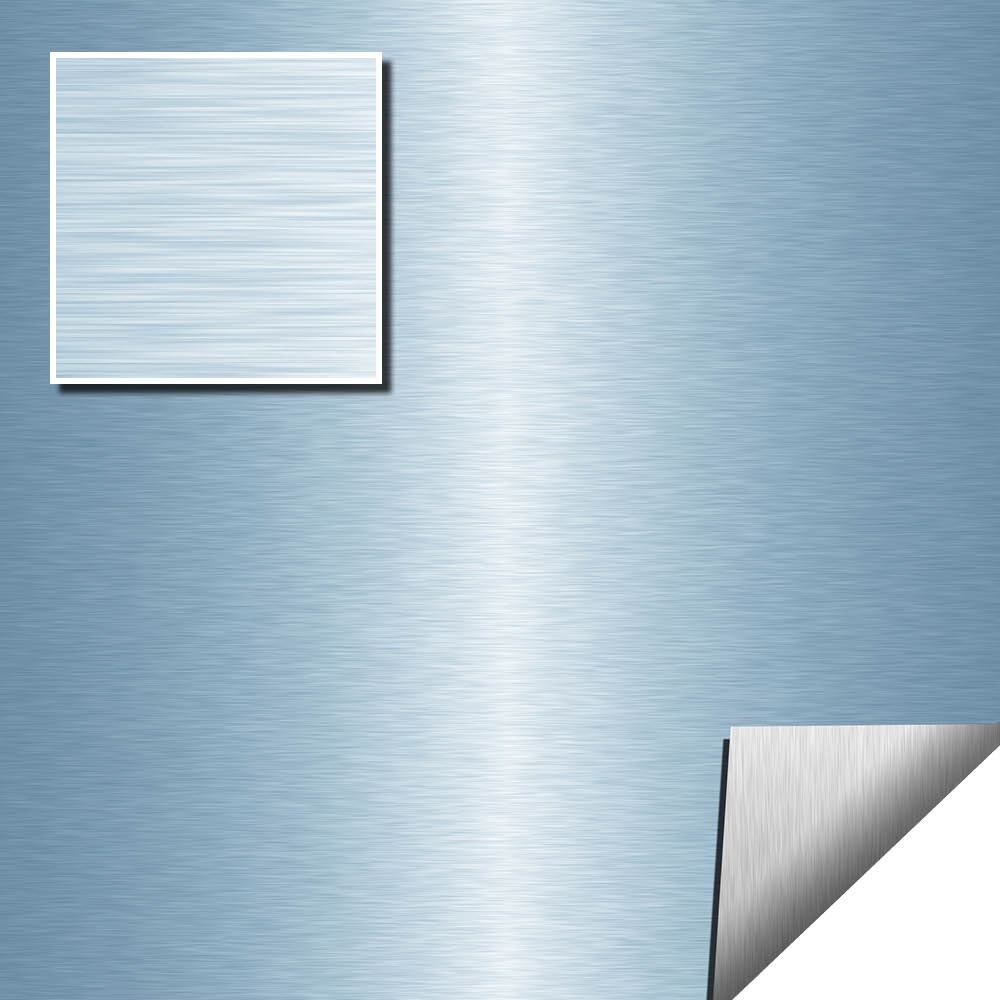

SH1 - Aluminum Foil Shielding with Mylar Film Backing

Name: SH1 - Aluminum Foil Shielding with Mylar Film Backing
Brand: zippertubing
Availability: InStock

Material Specification: 3005 UL Recognized

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Superior EMI Shielding (1MHz - 20 GHz)
Many shape configurations
Flame retardant (depends on Jacket selection)
Intended for minimal Flex Applications

SH1 Foil is a thin, lightweight shielding material that consists of a 1-mil Aluminum foil backed with a 1-mil Mylar (Polyester) film. It can be combined with most Zippertubing jacket materials and closure types to create a lightweight cable jacket with outstanding EMI shielding performance. The material is a general purpose shielding product that is ideal for use in protected areas like electronics racks and should not be used in areas where a great deal of flexing is likely to occur. It can be configured for Round, Flat and Rectangular cable shapes and is supplied with or without a sewn in 15 AWG braided Tin/Copper ground wire running the full length of the product. When using the SH1 Foil this EMI Shield material will be sewn to the selected jacket material and remain loose along one edge allowing the material to be easily removed from selected areas as desired. The SH1 Foil material is flame retardant but the final product flammability rating will be dependent on the outer jacket material and closure mechanism selected to create the final product.

Specifications

Break Strength: 27 lbs/in. width

REACH: Compliant

Dielectric Constant: 3.0

Elongation: 90% at break

Thickness: 0.0021"

Material: Aluminum w/Polyester Film Backing

Maximum Operating Temperature: 302°F

Minimum Operating Temperature: -70°F

RoHS: RoHS-10

Shelf Life: 60 Months

Shielding: SH1 (Foil Shielding)

Tensile Strength: 13,500 psi.

Shielding Effectiveness: Best

Flexibility: Good

Shielding Effectiveness

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

SH1 - Aluminum Foil Shielding with Mylar Film Backing

Material Sprcification: 3005

Superior EMI Shielding (1MHz - 20 GHz)
Many shape configurations
Flame retardant (depends on Jacket selection)
Intended for minimal Flex Applications

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Break Strength: 27 lbs/in. width

REACH: Compliant

Dielectric Constant: 3.0

Elongation: 90% at break

Thickness: 0.0021"

Material: Aluminum w/Polyester Film Backing

Maximum Operating Temperature: 302°F

Minimum Operating Temperature: -70°F

RoHS: RoHS-10

Shelf Life: 60 Months

Shielding: SH1 (Foil Shielding)

Tensile Strength: 13,500 psi.

Shielding Effectiveness: Best

Flexibility: Good

DESCRIPTION

SH1 Foil is a thin, lightweight shielding material that consists of a 1-mil Aluminum foil backed with a 1-mil Mylar (Polyester) film. It can be combined with most Zippertubing jacket materials and closure types to create a lightweight cable jacket with outstanding EMI shielding performance. The material is a general purpose shielding product that is ideal for use in protected areas like electronics racks and should not be used in areas where a great deal of flexing is likely to occur. It can be configured for Round, Flat and Rectangular cable shapes and is supplied with or without a sewn in 15 AWG braided Tin/Copper ground wire running the full length of the product. When using the SH1 Foil this EMI Shield material will be sewn to the selected jacket material and remain loose along one edge allowing the material to be easily removed from selected areas as desired. The SH1 Foil material is flame retardant but the final product flammability rating will be dependent on the outer jacket material and closure mechanism selected to create the final product.

SHIELDING EFFECTIVENESS

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
