Snap-Grip (Al) Electromagnetic Interference Protection

Snap-Grip (Al) Electrical Cable Protection

Snap-Grip® (Al) EMI Shielded Cable Bundling

Name: Snap-Grip® (Al) EMI Shielded Cable Bundling
Brand: Zippertubing
SKU: ZT21-08-001-0.375-G-X1968.0
Availability: InStock

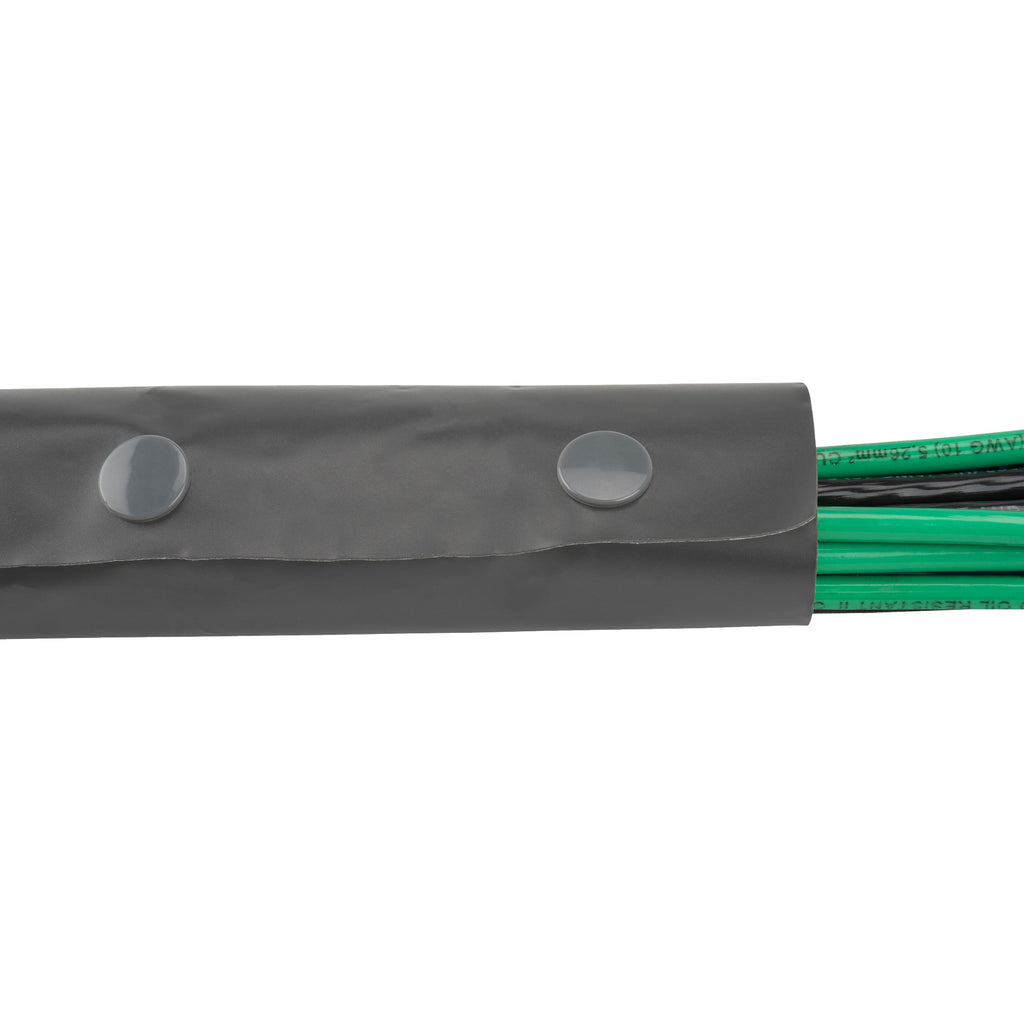

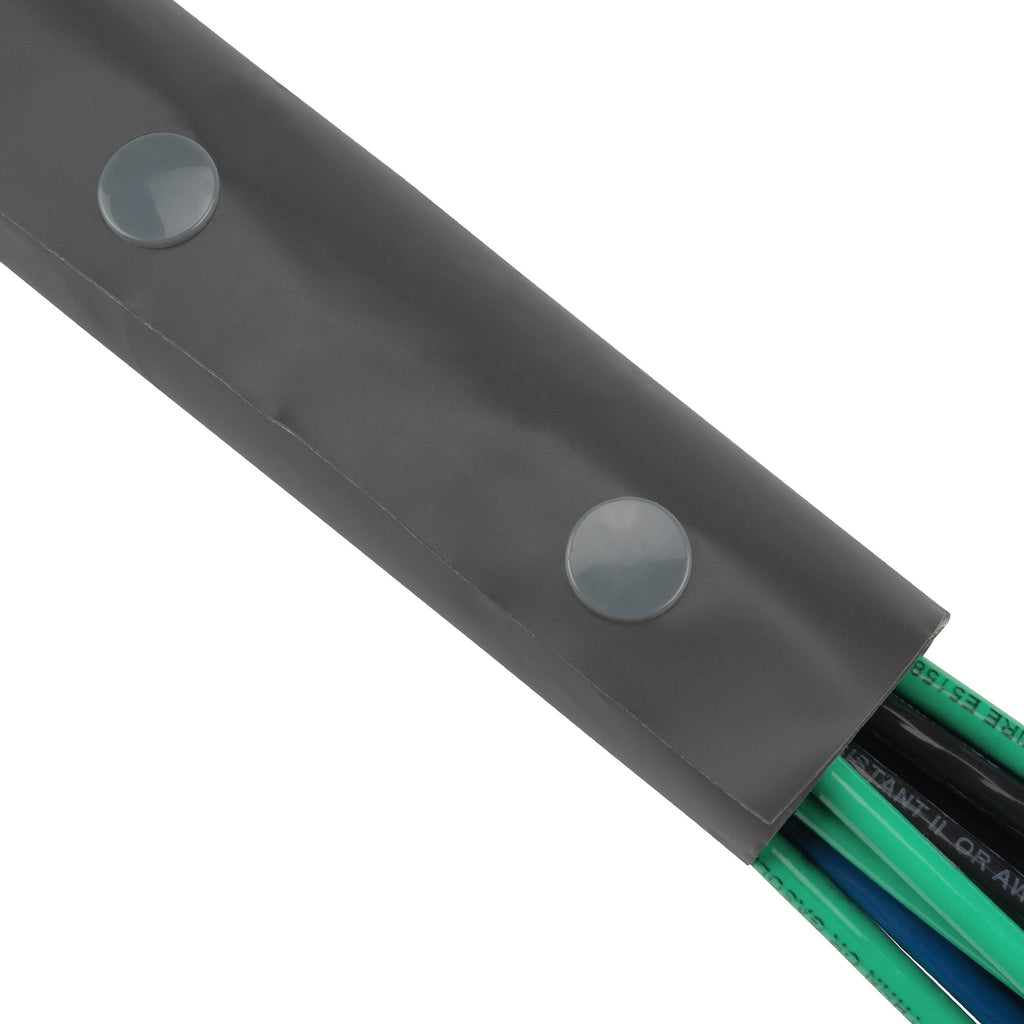

An EMI shielding, snap-button closure cable management solution that can be cut to length.

Drawing Number(s): ZT21-08-001

Select product options

Length:

Please fill in at least one field.

Diameter: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Quantity:

Selected Part Number:ZT21-08-001-0.375-G-X1968.0

Get A Quote

Print Datasheet

WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

Lightweight RoHS-10 compliant PVC jacket and SH1 aluminum foil provides shielding for cables and wires
Polyacetal snap-button closure allows for quick application an reentry
Includes a 15 AWG tin/copper drain wire for proper grounding

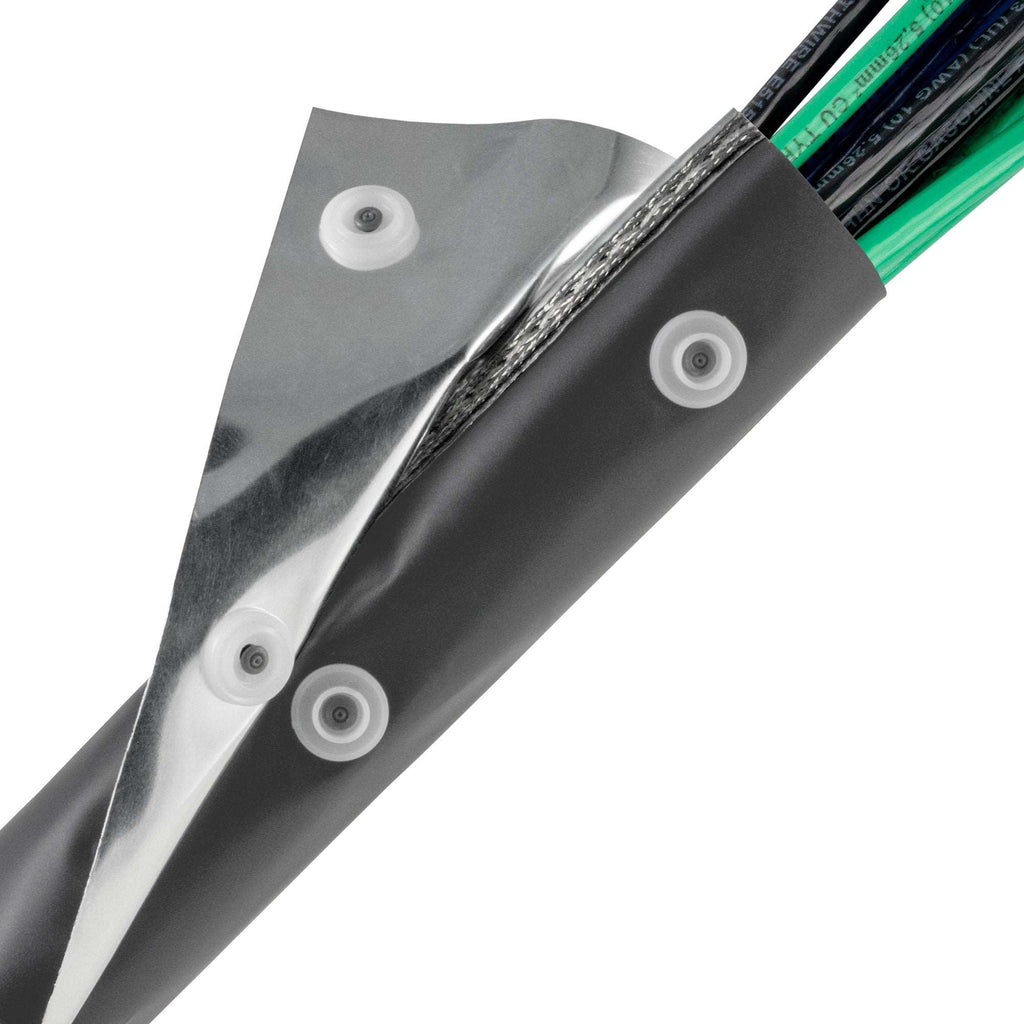

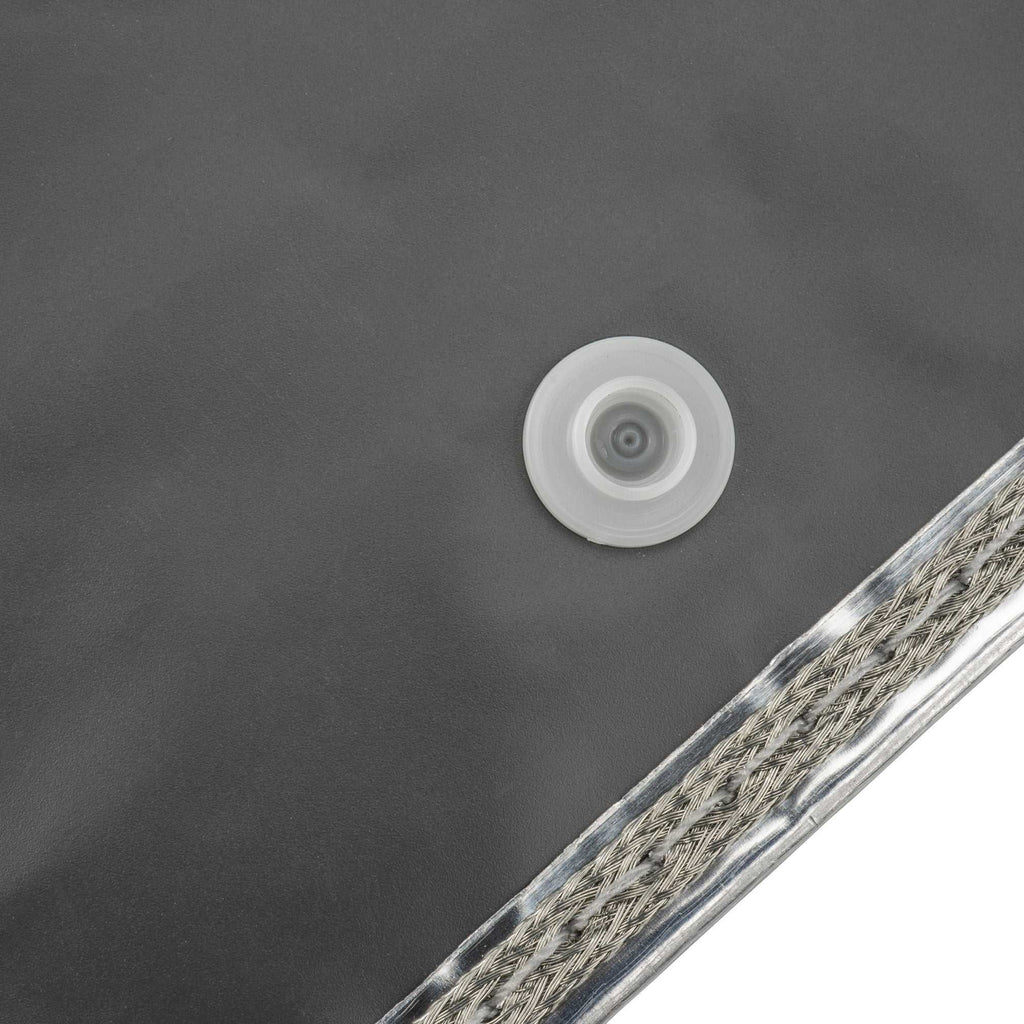

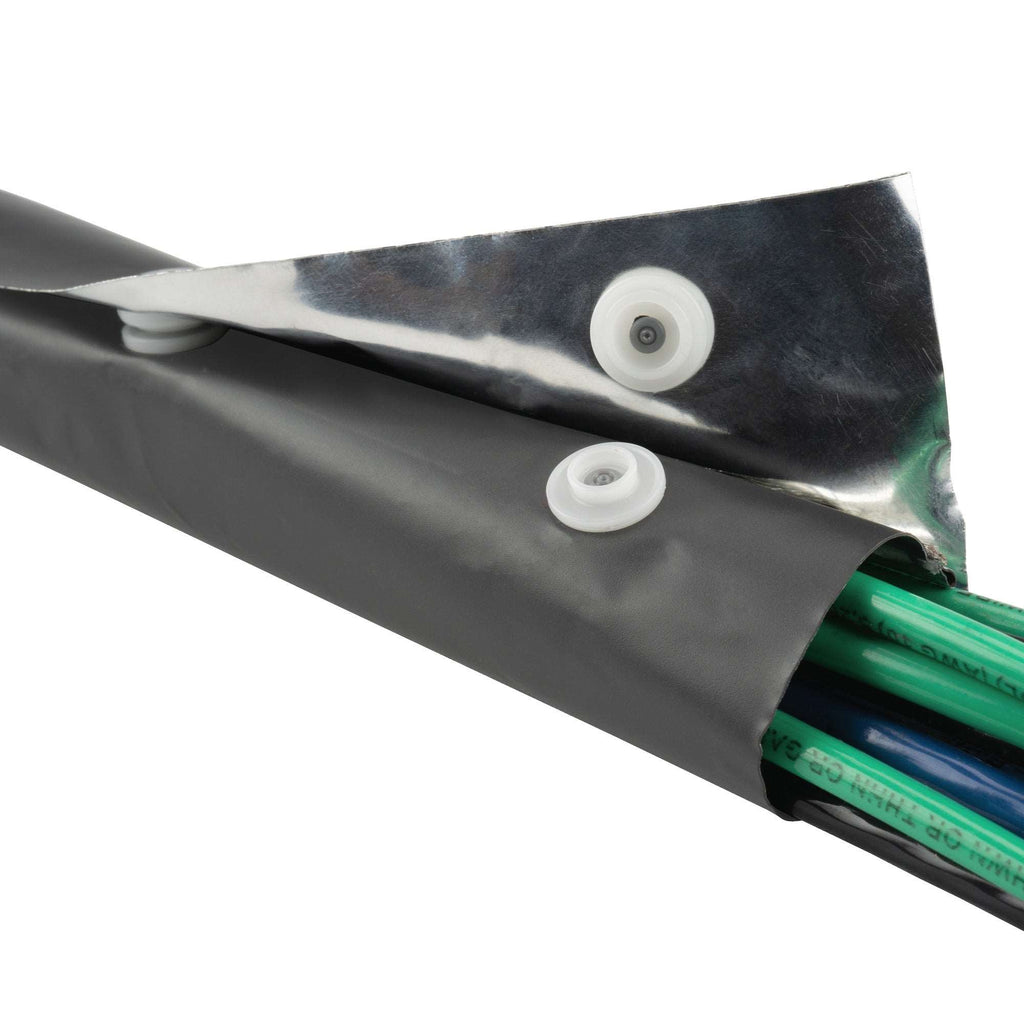

Snap-Grip® (Al) boasts a nylon snap-button closure and a PVC jacket with SH1 EMI shielding aluminum foil. As the first solution of its kind to feature this combination, Snap-Grip® (Al) is revolutionizing the field of EMI shielding for wires and cables. The PVC jacketing is flame retardant, RoHS compliant, and is ideal for environments where protection from EMI is required. Additionally, Snap-Grip® (Al) has a 15 AWG tin/copper braid sewn inside for proper grounding.

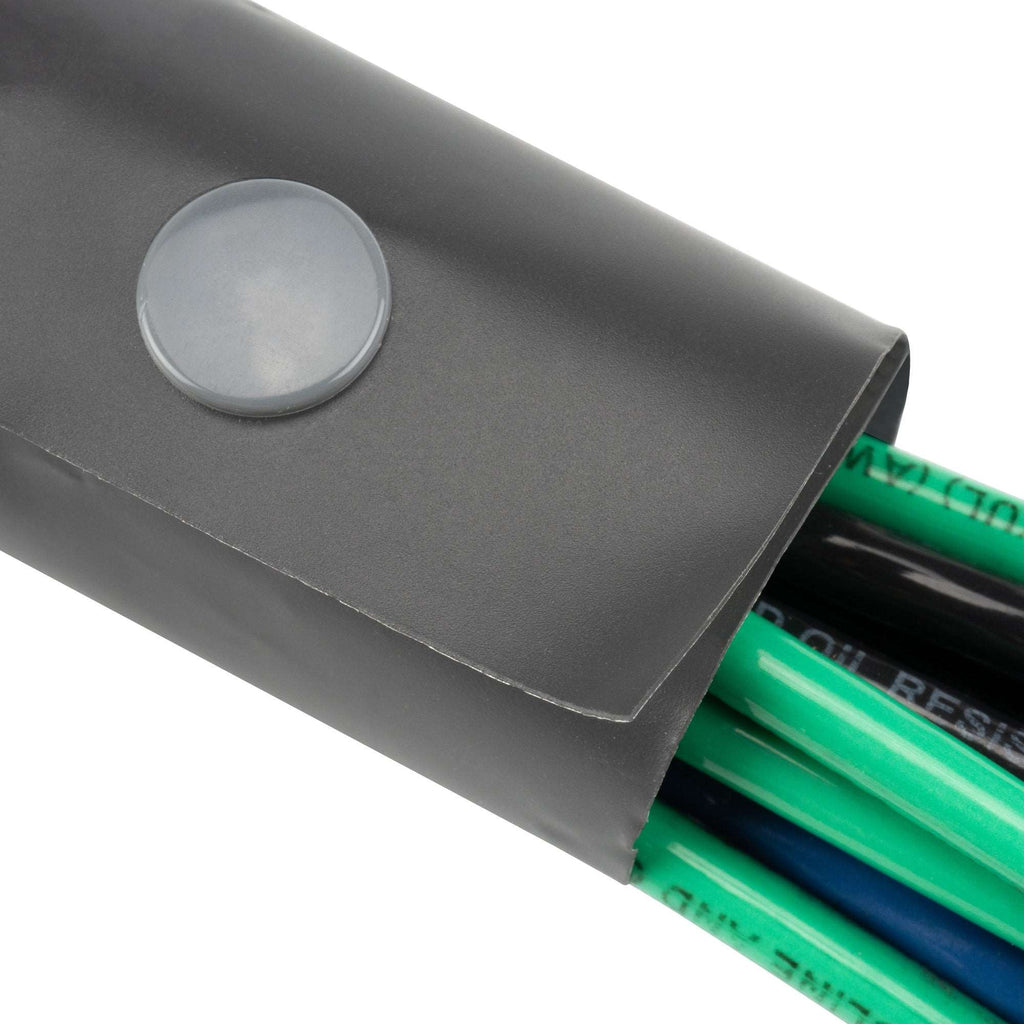

Snap-buttons are the ideal closure for applications that may require quick access to the components inside. The product can also be cut to length due to the spacing between the snaps.

Snap-Grip® (Al) can be used in a wide range of environments and applications while offering the benefits of easy installation and exceptional EMI shielding properties. Standard diameters range from 0.375” to 4”, with custom sizes available upon request. Snap-Grip® (Al) has an operational temperature range of 5°F to 140°F (-15°C to 60°C).

Features

Lightweight, flame-retardant RoHS-10 compliant PVC jacketing
Snap-button closure for quick access or reentry
Operational temperature range of 5°F to 140°F (-15°C to 60°C)

Benefits

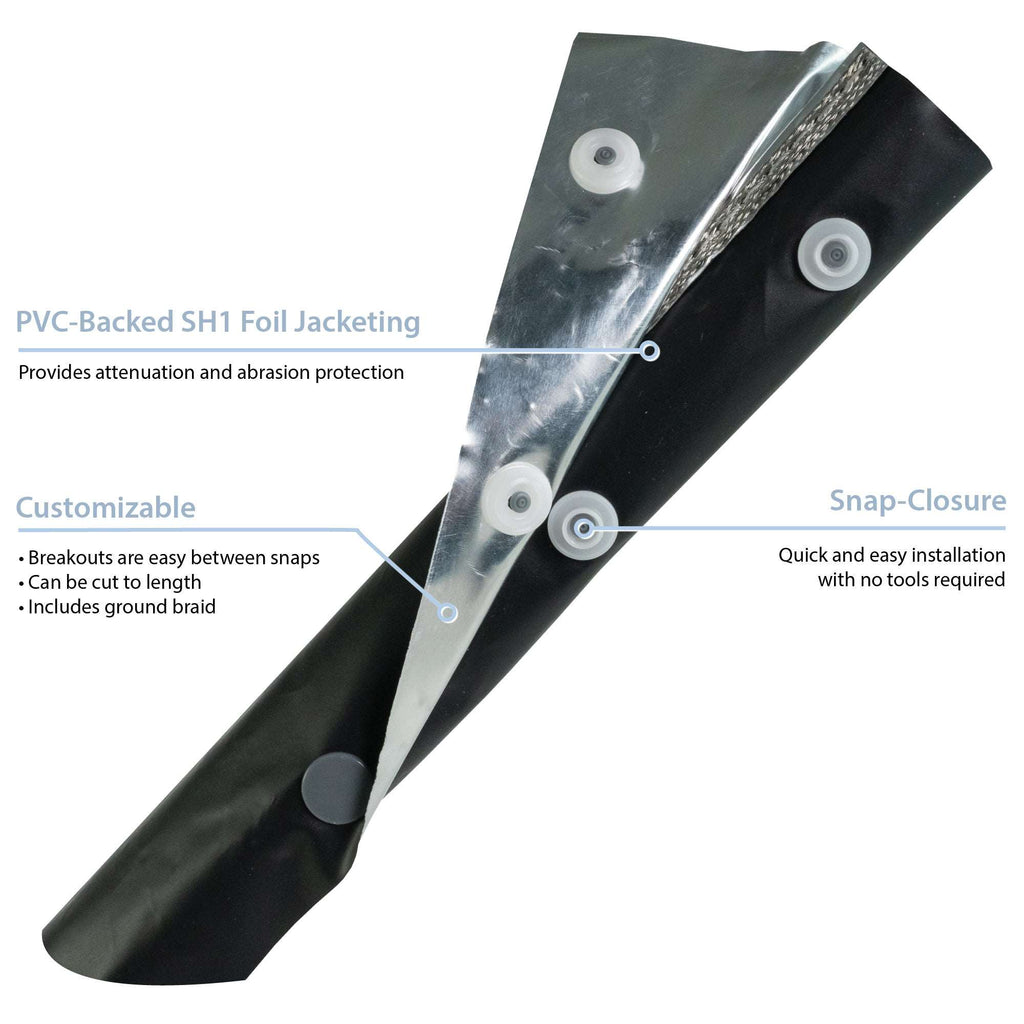

Can be cut to length for a variety of applications and requirements
SH1 aluminum foil provides EMI shielding for wires or cables
Easy to install — no tools required

Installation Instructions

FREQUENTLY ASKED QUESTIONS

Q: What lengths of Snap-Grip jacketing are available?

A: Snap-Grip comes in standard spool lengths of 25’, 50’, 100’, and 164’. Custom lengths can also be provided, just make sure to ask when ordering or include details on the PO for the lengths required.

Q: Can I cut the tubing?

A: Yes. Standard scissors are suitable for cutting through Snap-Grip sleeves.

Q: What diameter of jacketing do I need? Is it recommended to oversize?

A: We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation. If the application requires significant bending or flexing we will suggest even more extra room. For assistance with sizing you can also contact one of our design engineers.

Q: What is the minimum bend radius of the tubing?

A: There is no minimum bend radius for our Snap-Grip products.
The flexible jacketing material allows for extreme amounts of bending and flexing. The bend radius of the installed sleeving is typically dictated by the harness it is covering.

Q: Is the snap spacing standard or can I have them spaced closer or further apart?

A: For every material and diameter of Snap-Grip there is a “standard” snap spacing but we can custom adjust the spacing and amount of the snaps to optimize for your installation.

Specifications

Overall Performance

Diameter: 0.375" (3/8)
Closure: Polyacetal Snaps
Material: PVC Film (RoHS-10)
Maximum Operating Temperature: 140°F
Minimum Operating Temperature: 5°F
RoHS: RoHS-10
Shelf-Life: 6 months (Cool, Dark, Dry location; <77°F)
Shielding: SH1 (Foil Shielding)
Tensile Strength: 170N/3cm lengthwise

PVC Film (RoHS-10)

Flame Retardant: UL94 Equivalent
Color: Dark Grey
RoHS: RoHS-10

Polyacetal Snaps

SH1 (Foil Shielding)

Nylon Thread

15 AWG Braided Ground Straps

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar products


NAME	SHRINK-N-SHIELD® (2:1) EMI SHIELDED HEAT SHRINK TUBING	FLEX-SHIELD (HP) BRAIDED EMI SHIELDING SLEEVE
DESCRIPTION	Shrink-N-Shield® (2:1) is a MIL-SPEC, heat-shrink tubing with a 2:1 shrink ratio that provides exceptional shielding from EMI, RFI and EMF.	A braided, expandable EMI, RFI and EMF shielding sleeve that is lightweight and flexible—an ideal solution for the aerospace industry.
Closure
RoHS	RoHS-10	RoHS-10
Abrasion Resistance	Best
Installation Type	Pull-Through	Pull-Through
Purpose	EMI Shielding	Sleeve
Min Temperature	Extreme	Moderate
Minimum Operating Temperature	-67°F	-40°F
Max Temperature	Moderate	Moderate
Maximum Operating Temperature	275°F	302°F
Flexibility
	View	View
