Z-Coil Self-Closing Cable Jacketing

A self-closing wire bundling and protection sleeve made from a durable, flame-retardant, woven PET material

Drawing Number(s): ZT18-19-001

Z-Coil Self-Closing Cable Jacketing
Halogen Free RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT18-19-001-0.1875-B
Get A Quote
Z-Coil infographic
  • Resistant to abrasion, chemicals, mildew and fungus
  • PET material is lightweight, flexible, halogen-free and RoHS compliant
  • Self-wrapping sleeve requires no tools for installation

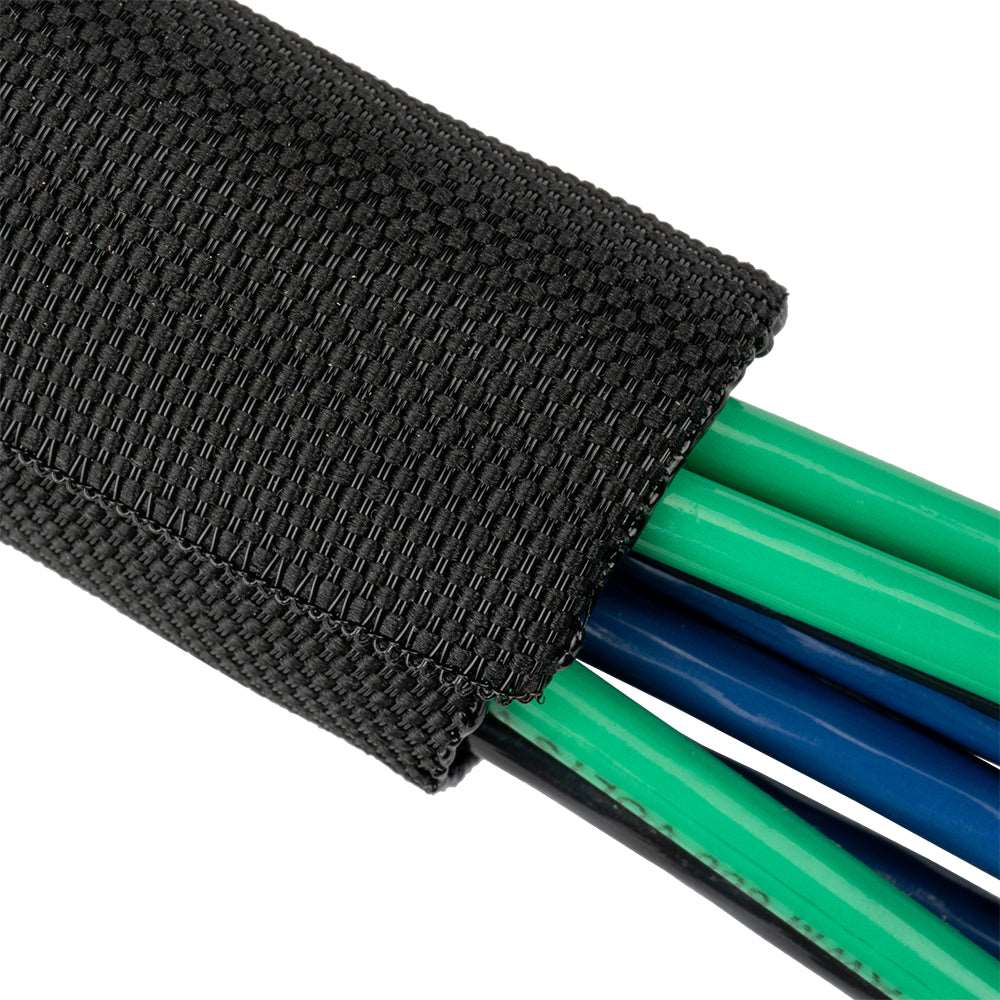

Z-Coil™ has become an industry favorite for its quick application and economical price point. The high-performance polyester fibers are woven into a split sleeve that self-wraps closed around cables. The PET material is resistant to abrasion, chemicals, mildew and fungus, making it the ideal solution for the most rugged environments and conditions.

The split loom design allows for easy and fast installation, even on complex cable assemblies, or harnesses that are pre-terminated.  Z-Coil™ features a 50% overlap to ensure maximum protection against dirt and debris entering the sleeving.  Additionally, the highly flexible woven construction will bend and flex with ease, without opening or restricting cable movement.

Z-Coil™ is a great alternative to split corrugated tubing, braided sleeving, spiral wrap, and tape.  It is ideal for high volume automotive cable assembly manufacturing or in-place, wrap-around, and retrofit installations.  Z-Coil™ is available in many different sizes and can be supplied in bulk spools or pre-cut with a hot-knife for a consistent application.

Overall Performance

  • Diameter: 0.1875" (3/16)
  • Chemical Resistance: Good
  • Closure: Self-Closing
  • Material: Polyester (PET)
  • Flammability: Self-extinguishing
  • Halogen Free: Yes
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-10

Polyester (PET)

  • REACH: Compliant
  • Chemical Resistance: Good
  • Flammability: Self-extinguishing
  • Mildew/Fungus Resistance: Good
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-10
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Zip-On® (DVH) Cable Bundling
NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  ZIP-ON® (DVH) CABLE BUNDLING
DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  Zip-On® (DVH) is a wrap-around cable management and protection solution featuring a heat-sealed, durable jacket and pressure track closure—available in a variety of colors.
Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  D-Track (PVC), Z-Track (PVC)
RoHS RoHS-10  RoHS-10  RoHS-10
Abrasion Resistance Best  Best  Better
Installation Type Wrap-Around  Wrap-Around  Wrap-Around
Purpose Sleeve  Sleeve  Sleeve
Min Temperature Low  Moderate  Low
Minimum Operating Temperature -4°F  -67°F  -34°F
Max Temperature Moderate  Low  Low
Maximum Operating Temperature 221°F  225°F  185°F
Flexibility Better  Best  Good
View  View  View
Zippertubing
Z-Coil infographic

Z-Coil Self-Closing Cable Jacketing

A self-closing wire bundling and protection sleeve made from a durable, flame-retardant, woven PET material

Drawing Number(s): ZT18-19-001

Selected Part Number: ZT18-19-001-0.1875-B

  • Resistant to abrasion, chemicals, mildew and fungus
  • PET material is lightweight, flexible, halogen-free and RoHS compliant
  • Self-wrapping sleeve requires no tools for installation
  • Military
    Z-Coil
    Z-Coil cable management
    Z-Coil wire harnessing
    Z-Coil flexible conduit

    Features

  • No tools required for installation
  • Multiple sizes from 0.1875” to 2”, with custom sizes available upon request
  • Operational temperature ranges from -58°F to 302°F (-50°C to 150°C)
  • Benefits

  • Split loom design allows for easy wrap-around installation
  • Durable polyester material is RoHS compliant, REACH compliant, and self-extinguishing
  • 50% material overlap keeps cables protected through bends and during use
  • Z-Coil Self-Closing Cable Jacketing
