Overview
- Flame-retardant, abrasion-resistant, fluid-resistant, and chemical-resistant jacketing
- Pressure-sensitive adhesive with paper release liner for quick application
- No tools required for installation

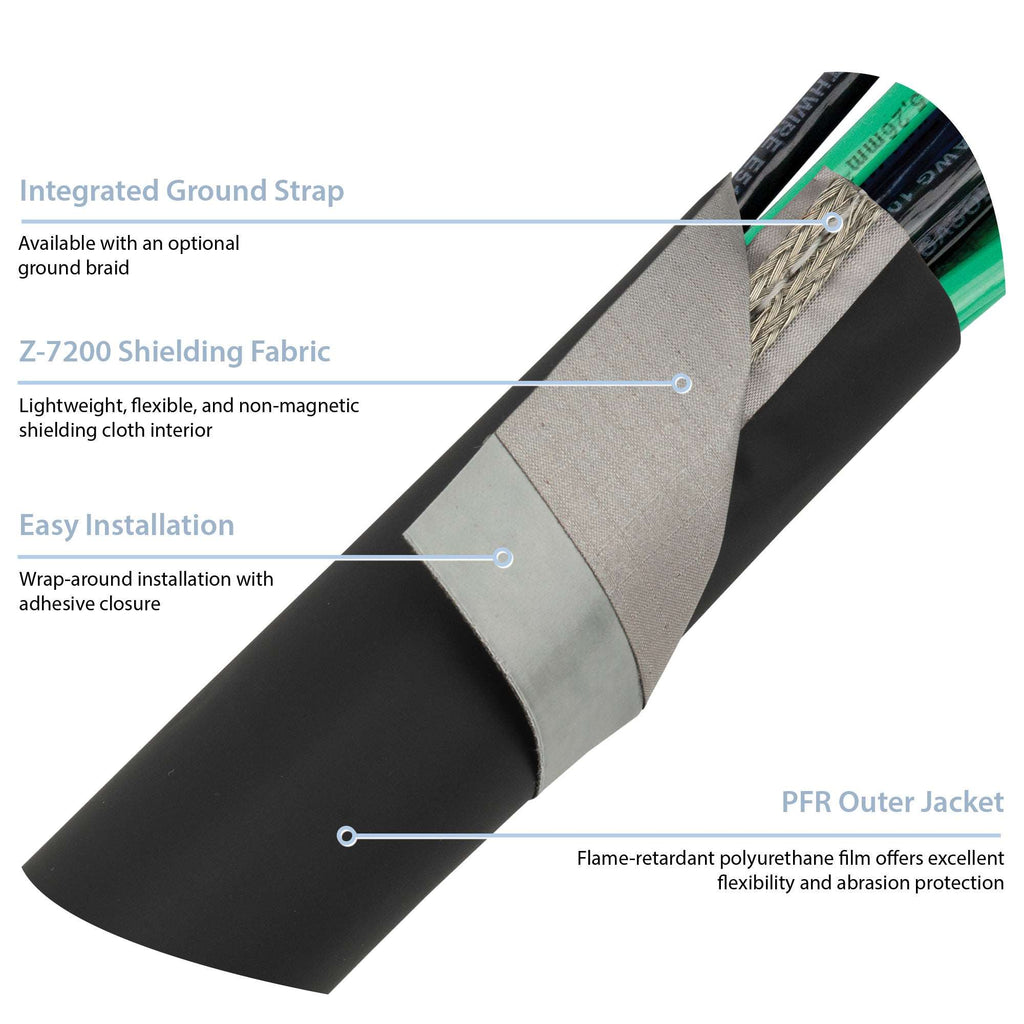

Z-Shield® (7200) provides exceptional EMI, RFI, and EMF shielding while also providing durable jacketing to protect its components. The aromatic polyurethane film is resistant to abrasion, fluid, chemical, and UV exposure; it’s also flame retardant. Additionally, the jacketing has excellent dielectric strength and is flexible in both high and low temperature conditions.

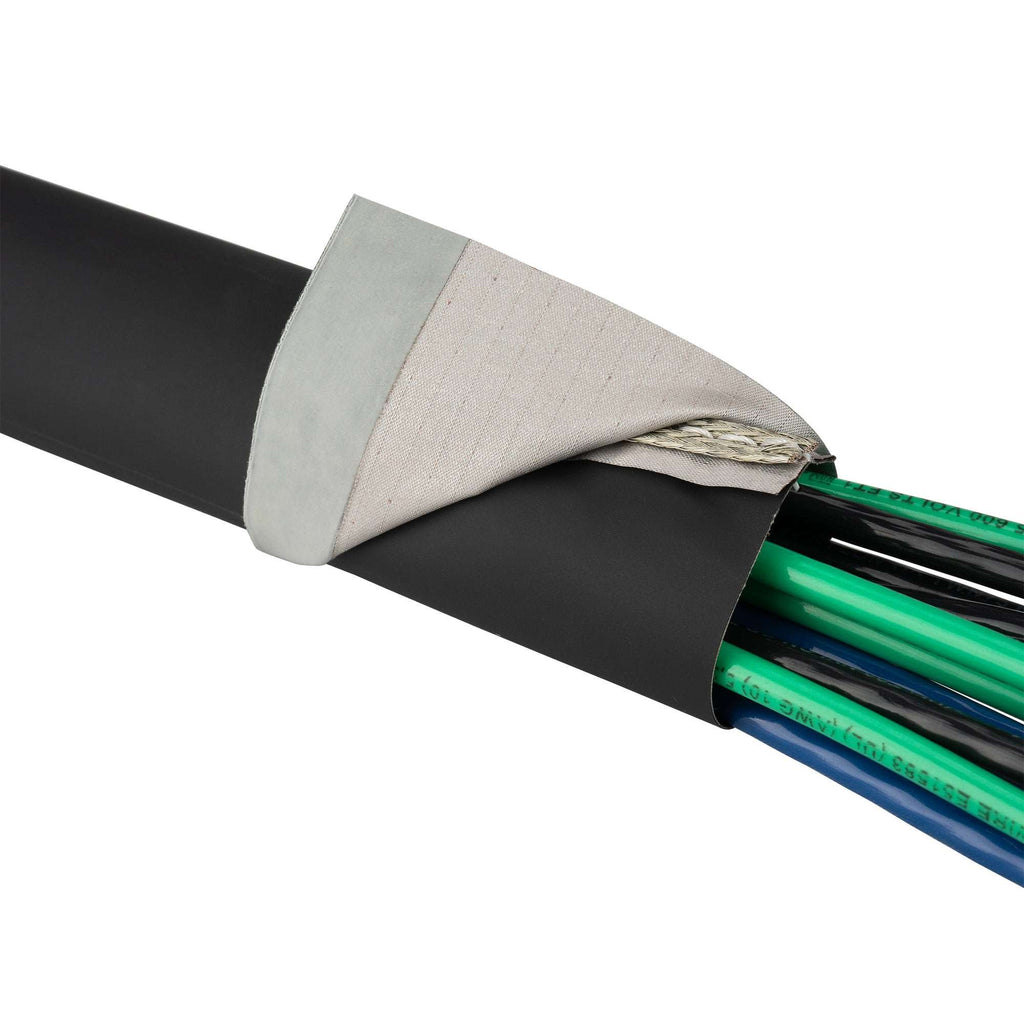

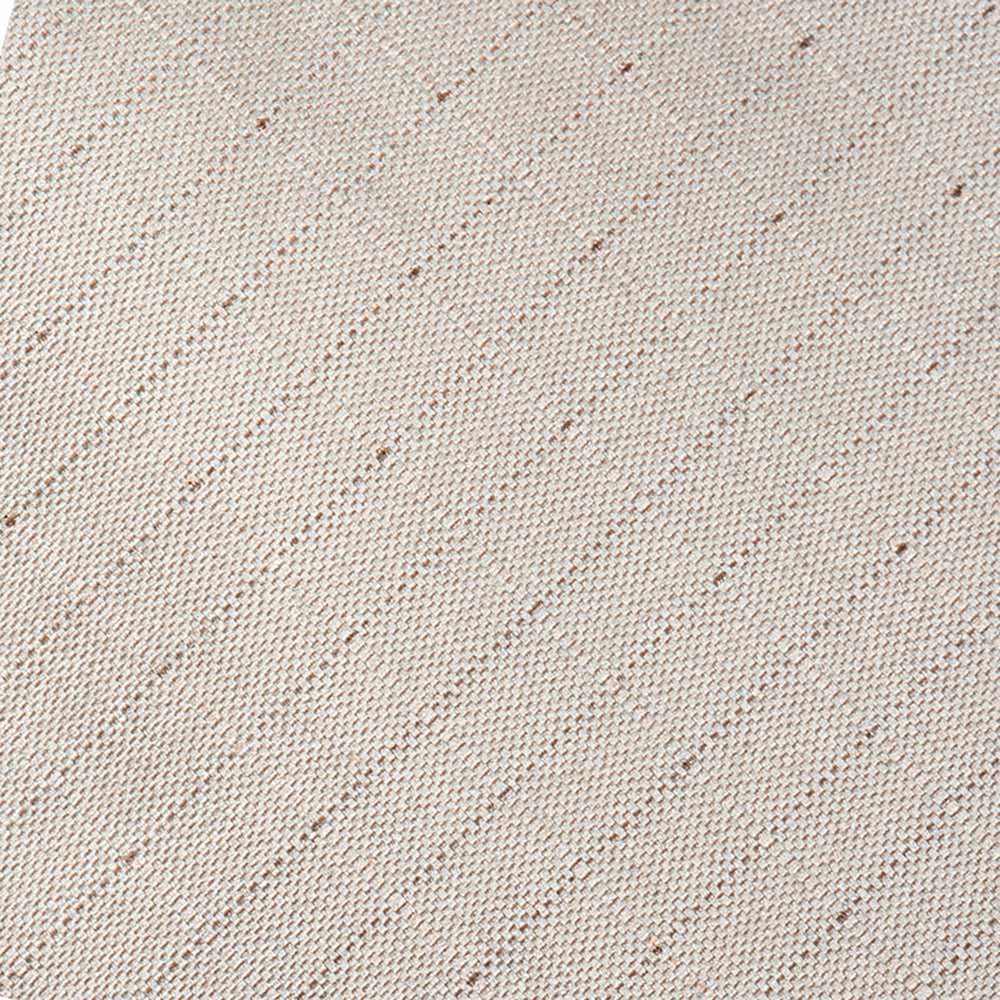

The Z-7200 shielding cloth is made from a nylon rip stop fabric, plated with copper, and a proprietary corrosion- and fray-resistant coating. The cloth is nickel-free, halogen-free, and hypoallergenic for applications with those requirements. The 7200 shielding cloth also has the unique quality of being non-magnetic. Thus, making Z-Shield® (7200) the perfect choice for applications dealing with sensitive magnetic instrumentation. The 7200 shielding cloth will outlast harsh conditions; it won’t flake or rub off overtime. If required, a grounding wire can be incorporated into the solution for applications that may need to be burial. The grounding strap is a braided and flattened tin-plated copper wire.
Z-Shield® (7200) is engineered for component diameters ranging from 0.25” to 4”, with custom sizes available upon request. The operational temperature ranges from -40° to 250°F (UL rated up to 176°F).
- Non-magnetic, halogen-free, and hypoallergenic shielding cloth
- Excellent abrasion, fluid, chemical, and UV resistance
- Operational temperature ranges from -40°F to 250°F (UL rated up to 176°F)
- Wrap-around wires or cables with secure, permanent adhesive closure
- Provides 360° EMI, RFI, and EMF shielding
- Jacketing protects components with a non-PVC material makeup
Specifications
Overall Performance
- Diameter:
- Closure:
- Material:
- Maximum Operating Temperature:
- Minimum Operating Temperature:
- RoHS:
- Shelf-Life:
- Shielding:
- Shielding Material:
PFR-8235
- Chemical Resistance:
- Dielectric Strength:
- Elongation:
- Flame Retardant:
- Thickness:
- Maximum Operating Temperature:
- Minimum Operating Temperature:
- RoHS:
- Shelf Life:
Z-7200
Nylon Thread
15 AWG Braided Ground Straps
Similar products
 |
 |
 |
|
| NAME | Z-3250-TAPE EMI SHIELDING TAPE | Z-SHIELD® (3250) EMI SHIELDING WRAP | Z-SHIELD® (AL) EMI SHIELDING WRAP |
| DESCRIPTION | A lightweight EMI shielding tape that is flexible, durable and corrosion resistant for a variety of applications. | A wrap-around solution that has a protective jacketing paired with an EMI shielding cloth and adhesive closure. | A wrap-around, EMI-shielding solution featuring a flame-retardant polyurethane jacket and high-performing shielding foil. |
| Closure | Tape (Electrically Conductive) | Adhesive | Adhesive |
| RoHS | RoHS-10 | RoHS-10 | RoHS-10 |
| Abrasion Resistance | |||
| Installation Type | Wrap-Around | Wrap-Around | Wrap-Around |
| Purpose | Tape | Sleeve | Sleeve |
| Min Temperature | Moderate | Moderate | Extreme |
| Minimum Operating Temperature | °F | -49°F | -65°F |
| Max Temperature | Moderate | Low | Low |
| Maximum Operating Temperature | 158°F | 250°F | 250°F |
| Flexibility | |||
| View | View | View |
Guides
Z-Shield® (7200) EMI Shielding Wrap
A wrap-around solution that has a non-magnetic EMI shielding cloth and an adhesive closure.
Drawing Number(s):
Selected Part Number: ZT15-04-003-0.25-B
Features
Benefits
Z-Shield® (7200) EMI Shielding Wrap
SHIELDING EFFECTIVENESS - Z-7200
Z-Shield® (7200) EMI Shielding Wrap
MATERIAL SPECIFICATIONS
