Zip-Wrap® (KWF-24) Kevlar Fabric Cable Bundling

A Lightweight, Ballistic Grade Woven Kevlar Fabric, Cable Management Solution with a Brass Zipper Closure

Drawing Number(s): ZT18-07-006

Zip-Wrap® (KWF-24) Kevlar Fabric Cable Bundling

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT18-07-006-0.5
Get A Quote

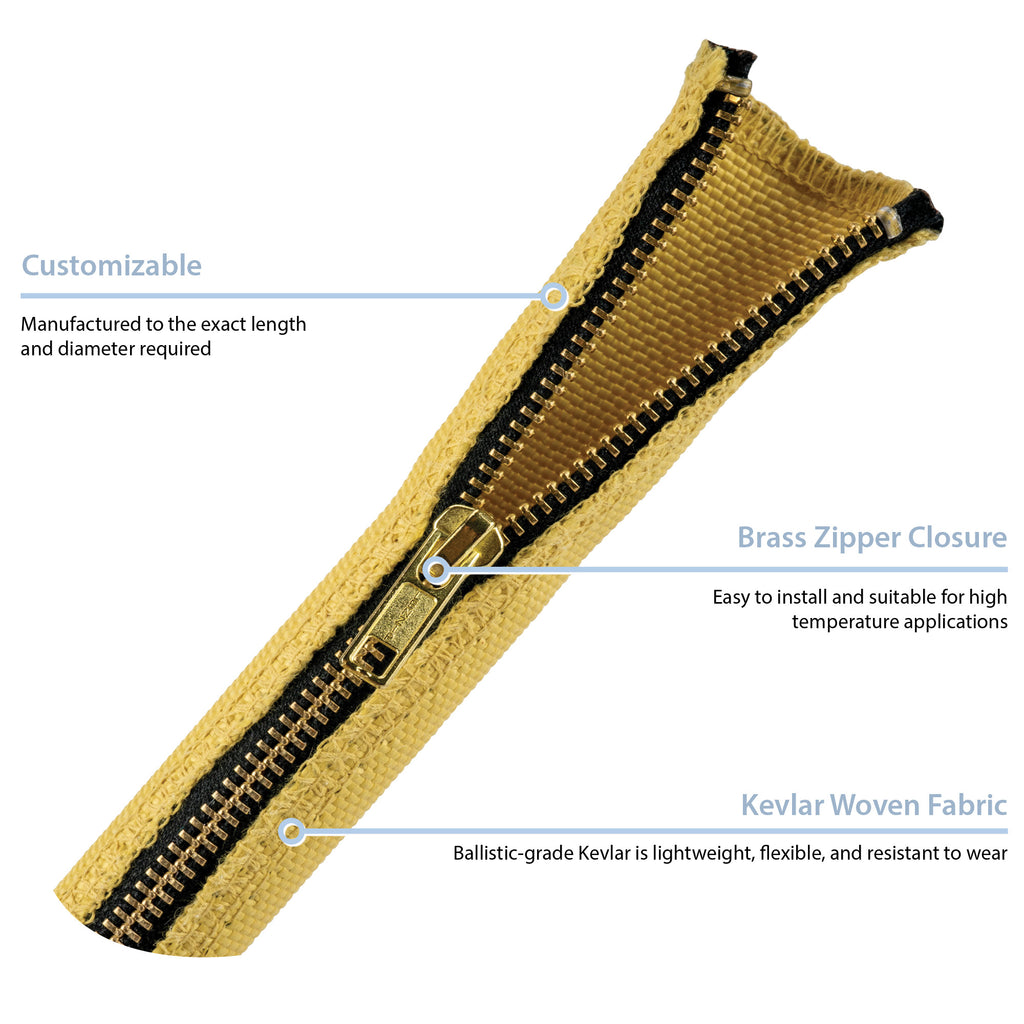

Zip-Wrap (KWF-24) infographic
  • Perfect for installations that may require re-entry
  • Ideal for cable bundles, wire harnesses, hoses, and other applications where flexibility, strength, and abrasion protection are required
  • Can be layered to protect valuable components from heat-related issues

Zip-Wrap® (KWF-24) is a lightweight, high-breakage strength, complete 360° thermal, and protection solution, for wires, cables, hoses or pipe management. Zip-Wrap® (Kevlar) can be customized to fit virtually any length and diameter, allowing for easy installation with a zipper closure system.

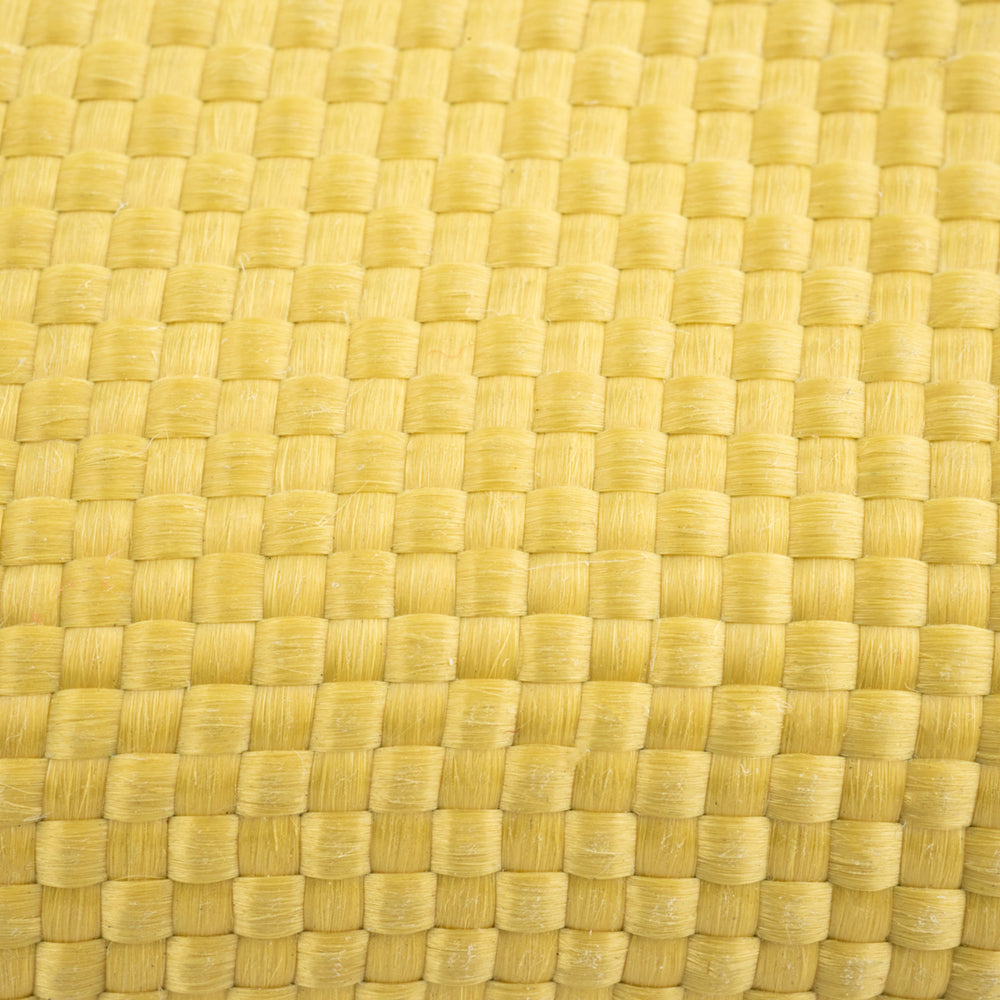

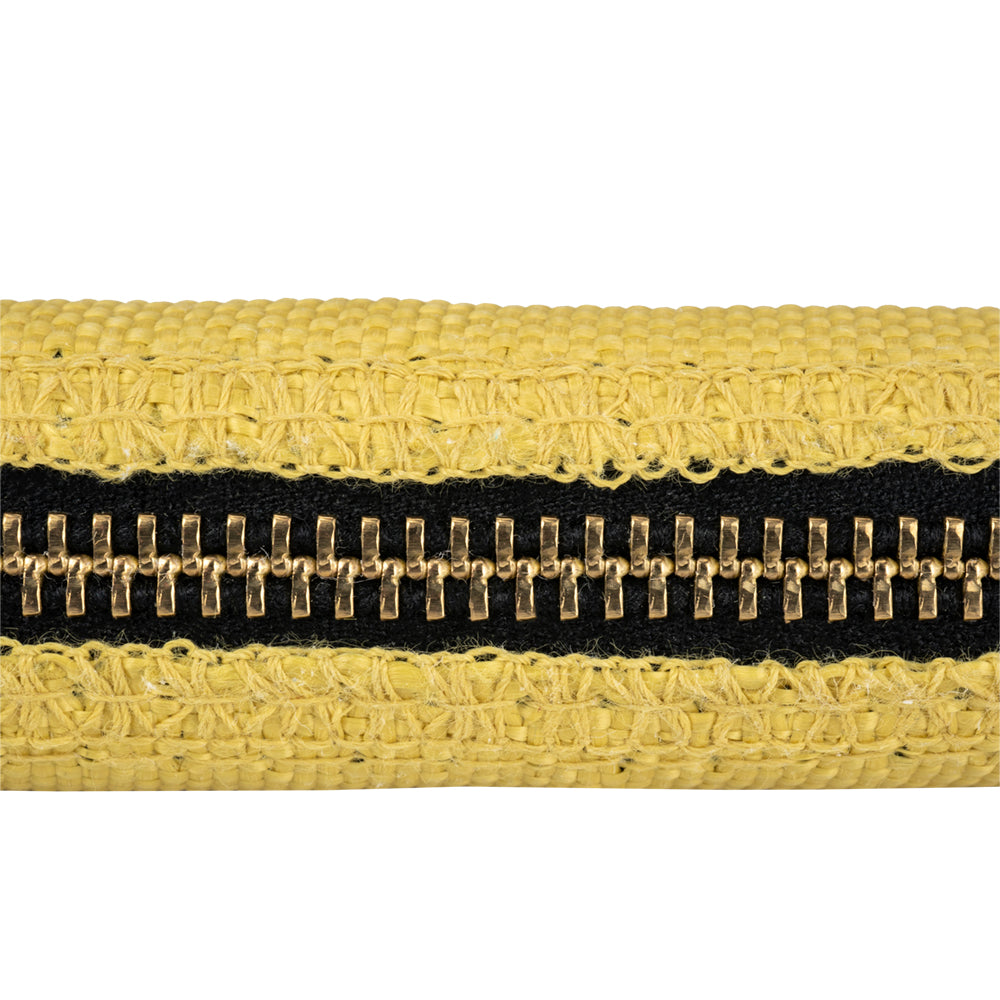

Zip-Wrap® (KWF-24) is comprised of a ballistic grade woven fabric Kevlar 24 style 745 outer jacketing material, resistant to most organic solvents, which provides strength, and abrasion protection reinforcement for wires or cables. The KWF-24 material is a lightweight, strong synthetic fiber that can be customized in an application using multiple layers to create the needed degree of protection. Sewn-in combination with a brass zipper closure system, using a high-temperature aramid Kevlar thread, resistant to bacteria and mildew, the total solution allows for the combined materials to create a durable 360° abrasion and thermal protection solution, that can be easily installed with no additional tools required.

Recommended Maximum Temperature Range for Long-Term Use in Air: 300° to 350°F

Q:  What lengths of zippered jacketing are available?

A:  Our zipper closed sleeves can be ordered in lengths as short as a few inches to lengths of 100 feet or more.  When quoting or ordering, make sure to clearly state the length of each sleeve in inches, which is typically referenced at the end of the part number (-X120.0 for example).

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  Can I cut the Jacketing?

A:  Yes*.  *Although you can cut the jacketing, we recommend ordering zipper-closed jackets to the exact length required.  If you need to trim down your jacketing, make sure you do it from the end opposite the zipper pin/box end and reinstall top zipper stops at the point where you trimmed the jacketing.  For more details on cutting or size recommendations please contact one of our design engineers.

Q:  Will the zipper keep out water and is it water-tight?

A:  No.  Our standard zippers do a great job at keeping big debris and dirt out of the jacketing but are not water tight.  Our tooth and coil zippers are rated at IP4X, which means they will keep out most dirt and dust but water splashing can enter the jacket.  If you need more protection, you may consider a track closure or adhesive closure option.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Zip-Wrap products.  The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

show more >>

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: Toothed Zipper (High-Temp Brass)
  • Material: Kevlar (KWF-24)
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -50°F
  • Zipper Color: Brass

Kevlar (KWF-24)

  • Decompsition: 800°F to 900°F
  • Denier: 3000
  • Weight: 14 oz. sq. yd
  • Break Strength: Length - 1600 lbs/in | Width - 1800 lbs/in
  • Chemical Resistance: Good
  • Color: Natural (Yellow)
  • Thickness: 0.024"

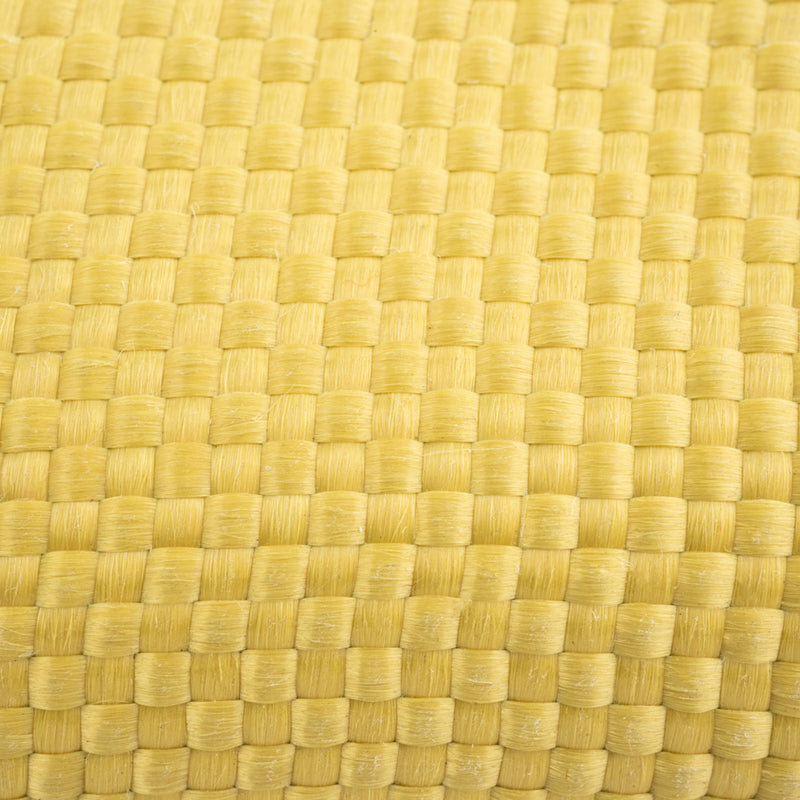

  • Material: Kevlar 24 Style 745 Ballistic Fabric
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -321°F

Toothed Zipper (High-Temp Brass)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZTT® (ALR-550) High Temp Pull-Through Cable Sleeve  Zipper-Mesh (ALHTG-65) EMI & Heat Shielded Jacketing  Snap-Grip® (SAM-1000) Heat Shielded Cable Bundling
    NAME ZTT® (ALR-550) HIGH TEMP PULL-THROUGH CABLE SLEEVE  ZIPPER-MESH (ALHTG-65) EMI & HEAT SHIELDED JACKETING  SNAP-GRIP® (SAM-1000) HEAT SHIELDED CABLE BUNDLING
    DESCRIPTION A pull-through, flexible heat shielding sleeve that protects components from continuous temperatures as high as 1,022°F.  An all-in-one, wrap-around solution combining the heat shielding of the ALHTG-65 with the EMI shielding of the knitted SHX-4 mesh and a brass zipper.  A heat shielding solution featuring a silicone, polymer-coated fiberglass jacket with stainless-steel snaps that protects components from temperatures up to 464°F.
    Closure Stainless Steel Reinforced Kevlar Thread  Toothed Zipper (High-Temp Brass)  Stainless Steel Snaps
    RoHS    RoHS-10
    Abrasion Resistance Good  Good
    Installation Type Pull-Through  Wrap-Around
    Purpose Sleeve  EMI Shielding
    Min Temperature Extreme  Moderate  Extreme
    Minimum Operating Temperature -58°F  -32°F  -58°F
    Max Temperature Extreme    Moderate
    Maximum Operating Temperature 1022°F  399°F  464°F
    Flexibility Better
    View  View  View
    Zippertubing
    Zip-Wrap (KWF-24) infographic

    Zip-Wrap® (KWF-24) Kevlar Fabric Cable Bundling

    A Lightweight, Ballistic Grade Woven Kevlar Fabric, Cable Management Solution with a Brass Zipper Closure

    Drawing Number(s): ZT18-07-006

    Selected Part Number: ZT18-07-006-0.5

  • Perfect for installations that may require re-entry
  • Ideal for cable bundles, wire harnesses, hoses, and other applications where flexibility, strength, and abrasion protection are required
  • Can be layered to protect valuable components from heat-related issues
  • Zip-Wrap (KWF-24)

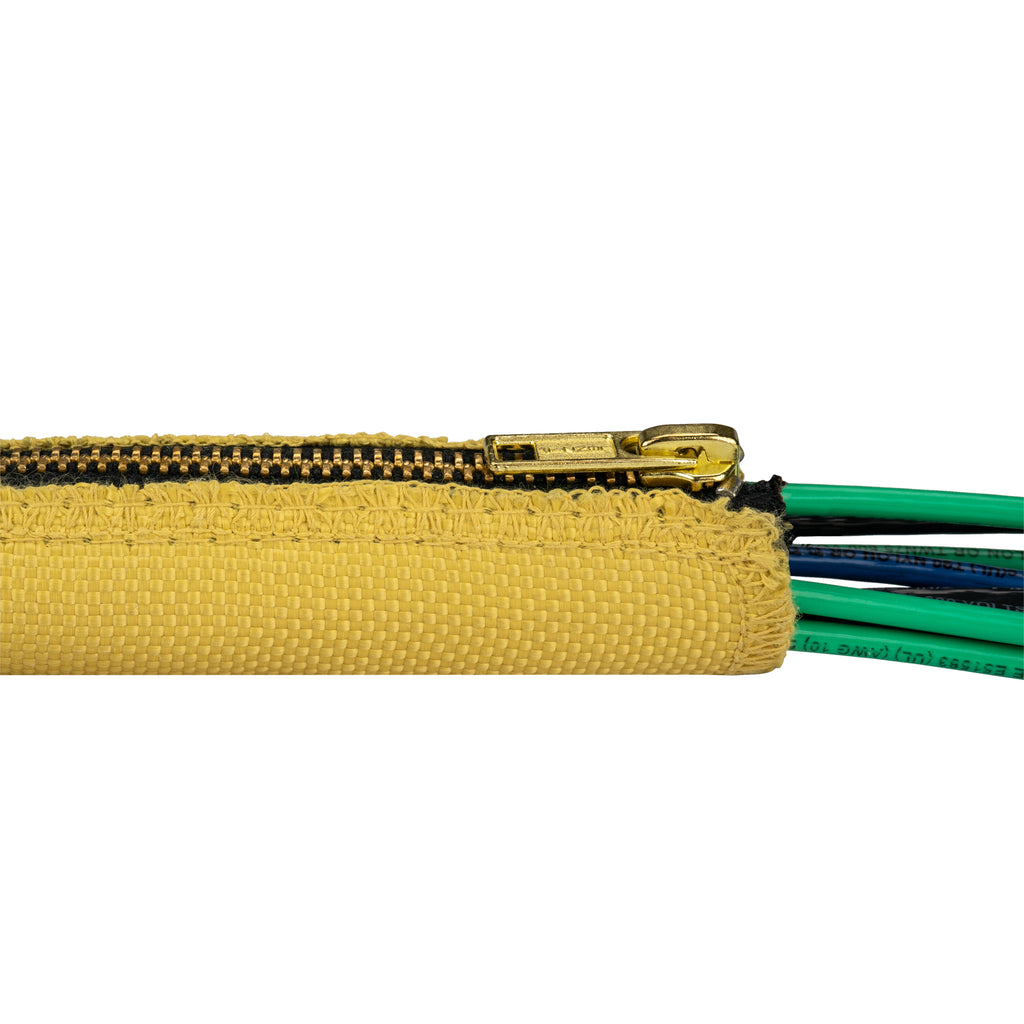

    Zip-Wrap (KWF-24) cable management

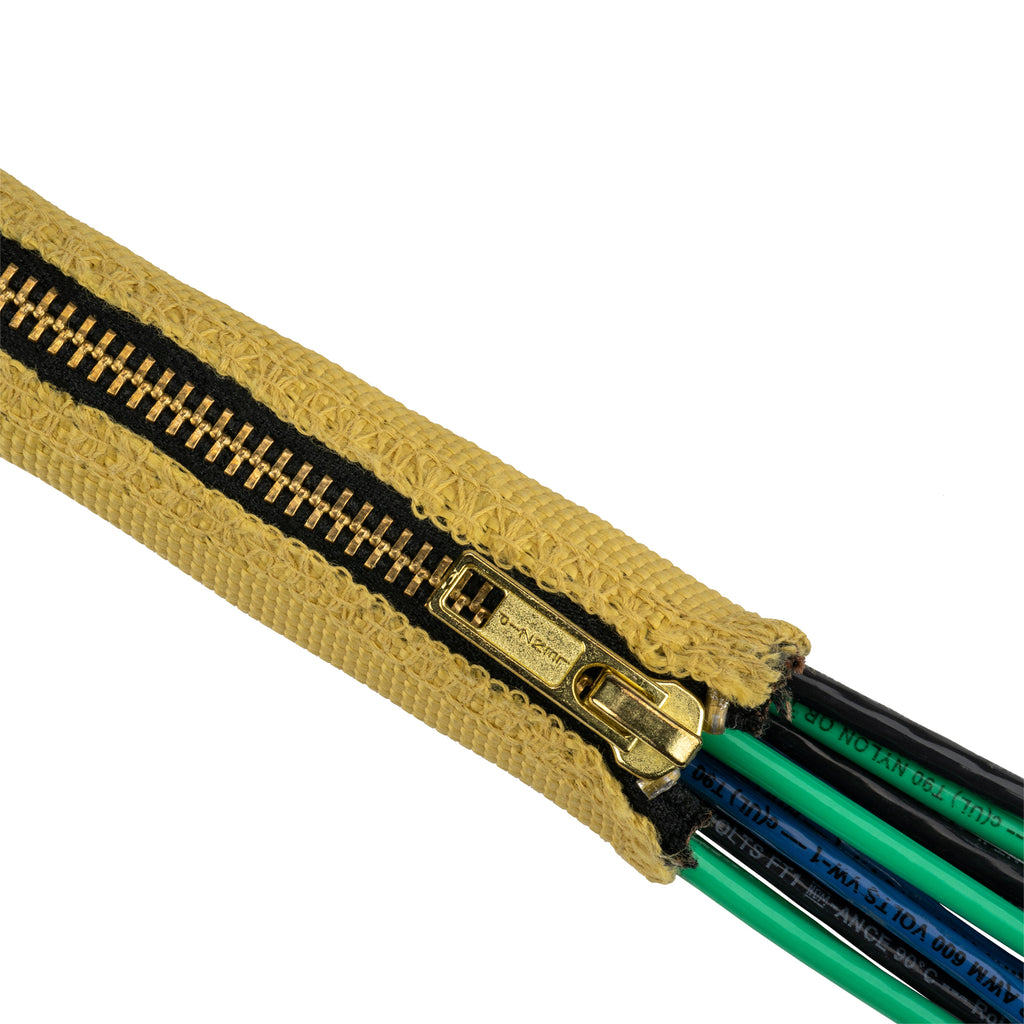

    Zip-Wrap (KWF-24) wire harnessing

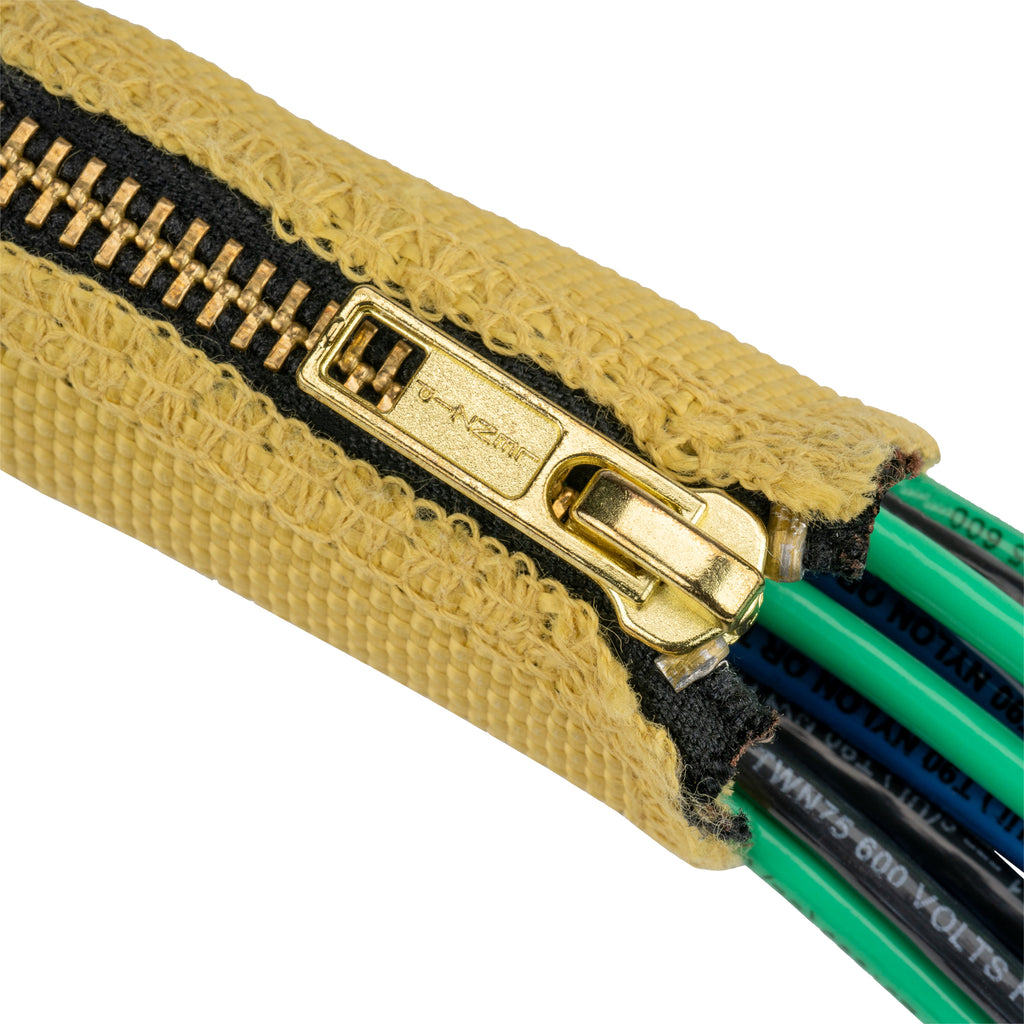

    Zip-Wrap (KWF-24) wire wrapping

    Features

  • A flexible, aramid, high breakage strength Kevlar material, combined with our high-temp brass zipper
  • Clean natural yellow appearance, perfect for military or industrial applications
  • Benefits

  • No additional tools required, easy installation and re-entry
  • Lightweight, strong ballistic grade woven fabric that can be layered for heat resistance
  • Zip-Wrap® (KWF-24) Kevlar Fabric Cable Bundling

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Zip-Wrap® (KWF-24) Kevlar Fabric Cable Bundling

    MATERIAL SPECIFICATIONS
