FEP-5 Teflon Film - 5 Mil

Name: FEP-5 Teflon Film - 5 Mil
Brand: zippertubing
Availability: InStock

A 0.005" thick Teflon® film that is chemical resistant, abrasion resistant, moisture resistant, and non-flammable.

Material Specification: 1004 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Extremely low-outgassing properties
Can withstand extremely low and moderately-high temperatures
Two types available; one for bonding of other materials and the other for extra flexural endurance

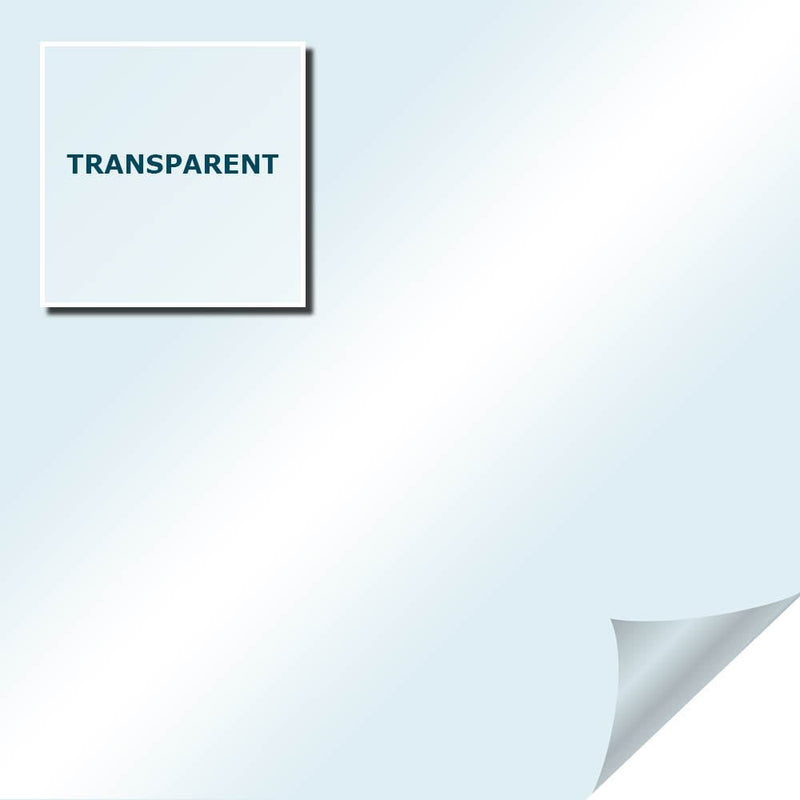

The FEP-5 material is a clear, fluorinated ethylene propylene (FEP) film. This jacketing is lightweight at only 0.005” thick, yet durable with resistance to abrasion and moisture as well as being self-extinguishing. This material excels in aerospace applications due to the low-outgassing properties and the ability to survive in temperatures ranging from -238°F to 401°F (-150°C to 205°C).

Our FEP-5 material is available in two types: Type I, which meets ASTM D-3368, Type II, Grade 1, and allows bonding to other materials; and Type III, which meets ASTM D-3368, Type III and is designed for applications requiring extra flexural endurance.

Specifications

Ratings: ASTM D-3368, Type I

Surface Resistivity: 1015 ohms/sq @ 23 C 38% RH

Dielectric Volts/Mil: 2500 volt/mil

Dielectric Constant: 2.15 @ 25 C @ 1000 Hz max.

Dielectric Strength: 2500 (Type I) volts/mil

Volume Resistivity: 1017 ohms/cm. @ 170 C min.

Flammability: Self-extinguishing

Color: Clear

Thickness: 0.005"

Maximum Operating Temperature: 401°F

Minimum Operating Temperature: -238°F

Melt Temperature: 500°F to 536°F

RoHS: RoHS-10

Tear Strength: 90 g/mil. min.

Dissipation Factor: .0003 @ 25 C @ 1000 Hz max.

Tensile Strength: 2500 psi.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar Materials


NAME	FEP-10 TEFLON FLIM - 10 MIL	PTG-5 - PTFE COATED FIBERGLASS FABRIC - 5 MIL	TPU-20 THERMOPLASTIC POLYURETHANE FILM - 20 MIL
DESCRIPTION	High Performance FEP Teflon® Film, 10 Mil	High Performance PTFE Coated Fiberglass Jacketing, 5 Mil	Flexible, High-Temperature, Flame-Retardant Film, 20 Mil
RoHS	RoHS-10	RoHS-10	RoHS-10
Abrasion Resistance	Best	Better	Best
Min Temperature	Extreme	Extreme	Moderate
Minimum Operating Temperature	-238°F	-99.4°F	-40°F
Max Temperature	Extreme	Extreme	Moderate
Maximum Operating Temperature	401°F	500°F	257°F
Flexibility	Good	Better	Good
	View	View	View

FEP-5 Teflon Film - 5 Mil

A 0.005" thick Teflon® film that is chemical resistant, abrasion resistant, moisture resistant, and non-flammable.

Material Sprcification: 1004-5

Extremely low-outgassing properties
Can withstand extremely low and moderately-high temperatures
Two types available; one for bonding of other materials and the other for extra flexural endurance

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Ratings: ASTM D-3368, Type I

Surface Resistivity: 1015 ohms/sq @ 23 C 38% RH

Dielectric Volts/Mil: 2500 volt/mil

Dielectric Constant: 2.15 @ 25 C @ 1000 Hz max.

Dielectric Strength: 2500 (Type I) volts/mil

Volume Resistivity: 1017 ohms/cm. @ 170 C min.

Flammability: Self-extinguishing

Color: Clear

Thickness: 0.005"

Maximum Operating Temperature: 401°F

Minimum Operating Temperature: -238°F

Melt Temperature: 500°F to 536°F

RoHS: RoHS-10

Tear Strength: 90 g/mil. min.

Dissipation Factor: .0003 @ 25 C @ 1000 Hz max.

Tensile Strength: 2500 psi.

DESCRIPTION

The FEP-5 material is a clear, fluorinated ethylene propylene (FEP) film. This jacketing is lightweight at only 0.005” thick, yet durable with resistance to abrasion and moisture as well as being self-extinguishing. This material excels in aerospace applications due to the low-outgassing properties and the ability to survive in temperatures ranging from -238°F to 401°F (-150°C to 205°C).

Our FEP-5 material is available in two types: Type I, which meets ASTM D-3368, Type II, Grade 1, and allows bonding to other materials; and Type III, which meets ASTM D-3368, Type III and is designed for applications requiring extra flexural endurance.
