PTG-5 - PTFE Coated Fiberglass Fabric - 5 Mil

Name: PTG-5 - PTFE Coated Fiberglass Fabric - 5 Mil
Brand: zippertubing
Availability: InStock

High Performance PTFE Coated Fiberglass Jacketing, 5 Mil

Material Specification: 1107 RoHS

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

Mil-I-18746 Material
High & Low Temperature Resistance
Outstanding Chemical Resistance
Thin & Lightweight

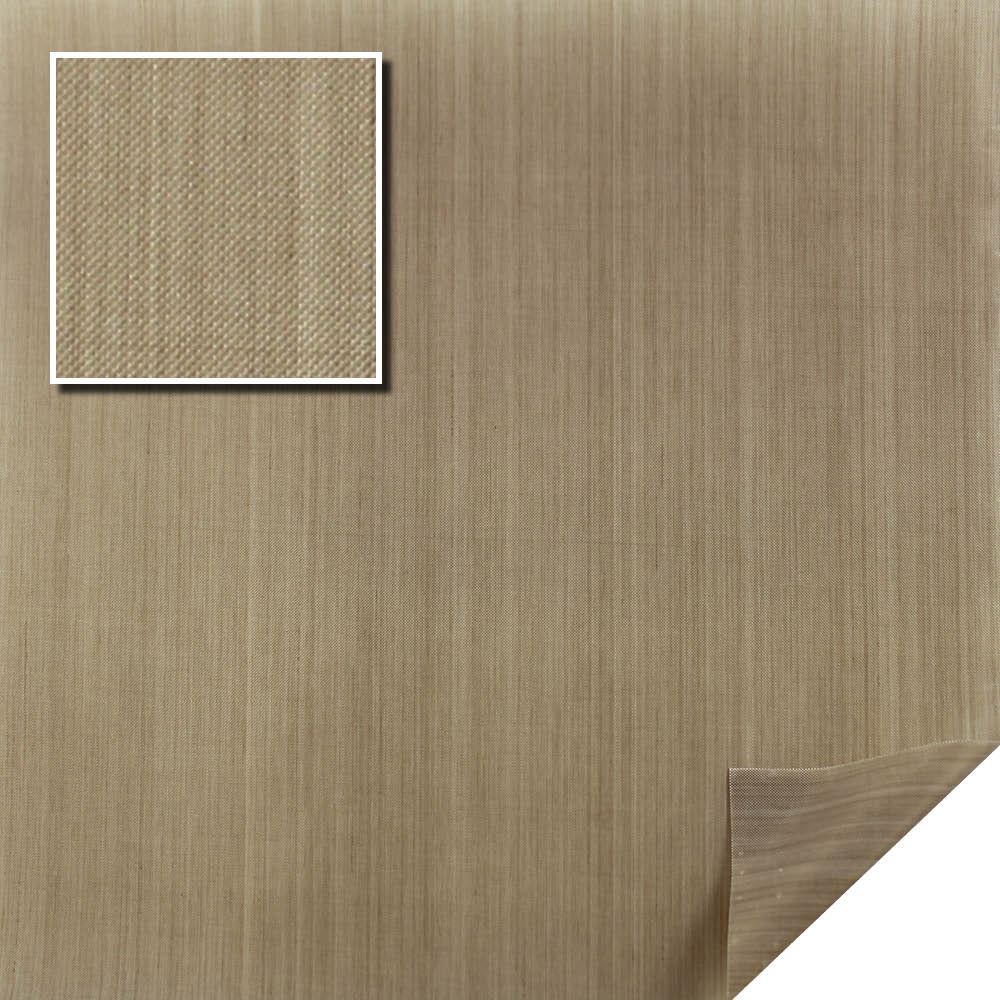

PTG-5 is a lightweight Polytetrafluoroethyene (PTFE) Teflon coated; fine weave fiberglass glass fabric that is .005" thick. The material conforms to Mil-I-18746 and the Teflon coating make this material ideal for high and low temperatures and/or applications requiring exposure to severe chemical environments. The material has a long history of usage in the Aerospace and Spacecraft industries and is most commonly supplied with Zippertubing's FEP Teflon Z-Track closure. The operational temperature range is -73°C to 260°C.

Specifications

Mil-Spec: Mil-I-18746 and AA-59300, Class 3

Break Strength: 70lb./1.0 wide strip

REACH: Compliant

Dielectric Strength: 500 volt/mil

Flammability: Self-extinguishing

Thickness: 0.005"

Material: PTFE Coated Fiberglass

Maximum Operating Temperature: 500°F

Minimum Operating Temperature: -99.4°F

RoHS: RoHS-10

Shelf Life: 60 Months

Flexibility: Better

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar Materials


NAME	FEP-5 TEFLON FILM - 5 MIL	FEP-10 TEFLON FLIM - 10 MIL	TREVIRA CANVAS FABRIC - 15 MIL
DESCRIPTION	A 0.005" thick Teflon® film that is chemical resistant, abrasion resistant, moisture resistant, and non-flammable.	High Performance FEP Teflon® Film, 10 Mil	Lightweight Canvas Jacketing, 15 Mil
RoHS	RoHS-10	RoHS-10	RoHS-10
Abrasion Resistance		Best	Good
Min Temperature	Extreme	Extreme	Moderate
Minimum Operating Temperature	-238°F	-238°F	-40°F
Max Temperature	Extreme	Extreme	Moderate
Maximum Operating Temperature	401°F	401°F	320°F
Flexibility		Good	Best
	View	View	View

PTG-5 - PTFE Coated Fiberglass Fabric - 5 Mil

High Performance PTFE Coated Fiberglass Jacketing, 5 Mil

Material Sprcification: 1107

Mil-I-18746 Material
High & Low Temperature Resistance
Outstanding Chemical Resistance
Thin & Lightweight

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Mil-Spec: Mil-I-18746 and AA-59300, Class 3

Break Strength: 70lb./1.0 wide strip

REACH: Compliant

Dielectric Strength: 500 volt/mil

Flammability: Self-extinguishing

Thickness: 0.005"

Material: PTFE Coated Fiberglass

Maximum Operating Temperature: 500°F

Minimum Operating Temperature: -99.4°F

RoHS: RoHS-10

Shelf Life: 60 Months

Flexibility: Better

DESCRIPTION

PTG-5 is a lightweight Polytetrafluoroethyene (PTFE) Teflon coated; fine weave fiberglass glass fabric that is .005" thick. The material conforms to Mil-I-18746 and the Teflon coating make this material ideal for high and low temperatures and/or applications requiring exposure to severe chemical environments. The material has a long history of usage in the Aerospace and Spacecraft industries and is most commonly supplied with Zippertubing's FEP Teflon Z-Track closure. The operational temperature range is -73°C to 260°C.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
